Nanpu Motor is a manufacturer and brand of 120 BLDC Motor(Brushless DC Motor) in China. We specialize in providing the most essential drive motors for electric tricycles, rickshaws, and tuk tuks. Our 120BLDC is one of the best-selling products in this industry. In addition, we are also engaged in the research and development, manufacturing, and sales of controllers, rear axles, and gearboxes. And our products have a good price advantage and cover major markets in Europe, America, and Asia. We look forward to becoming your long-term partner in China.
Product introduction

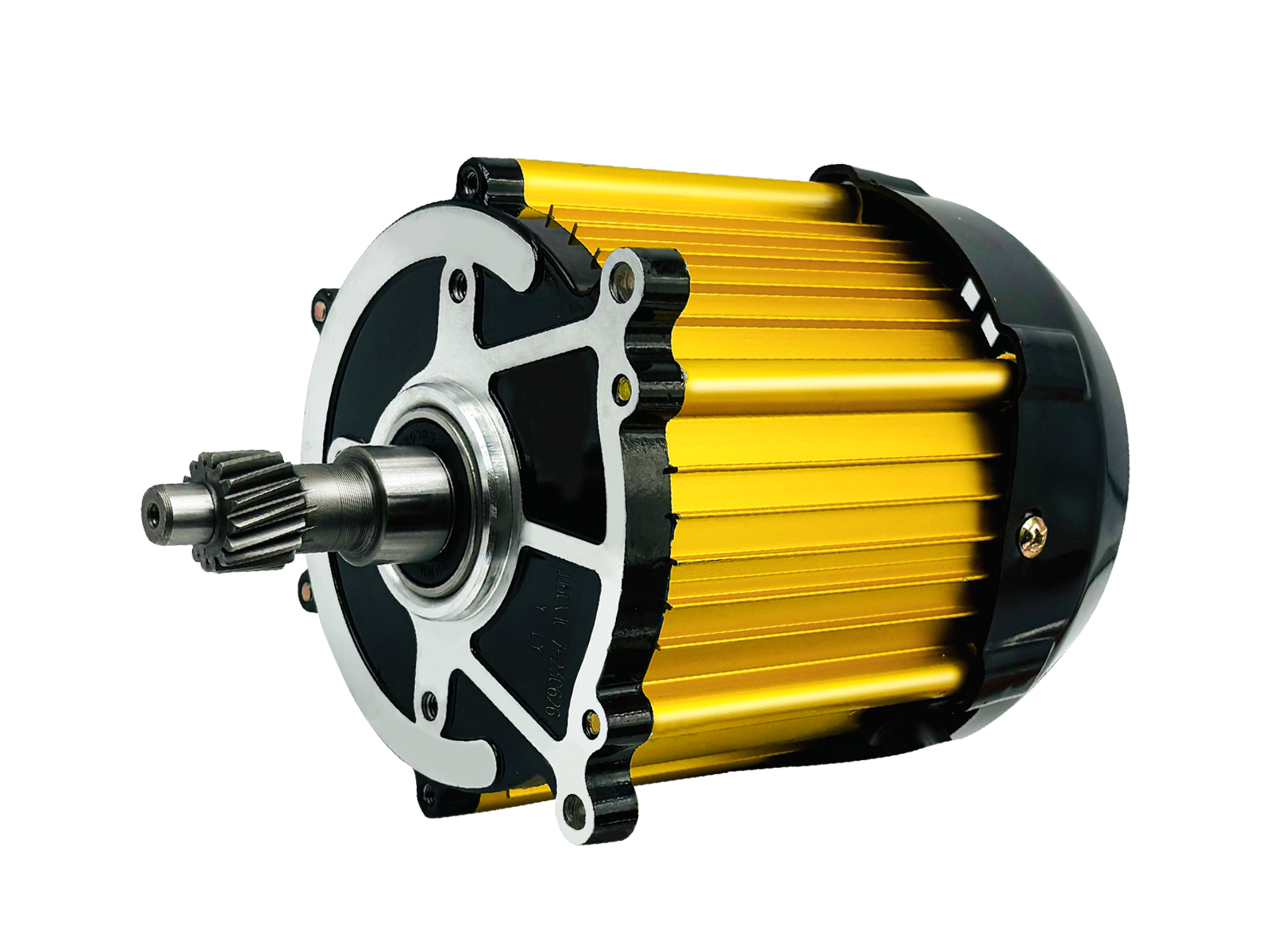

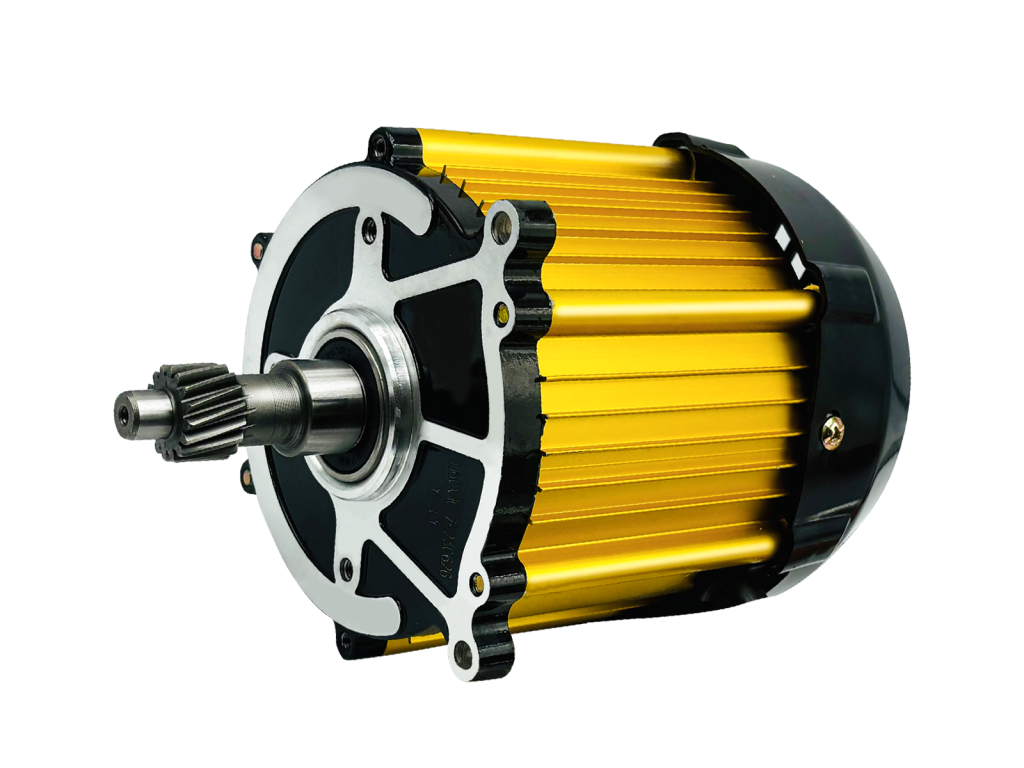

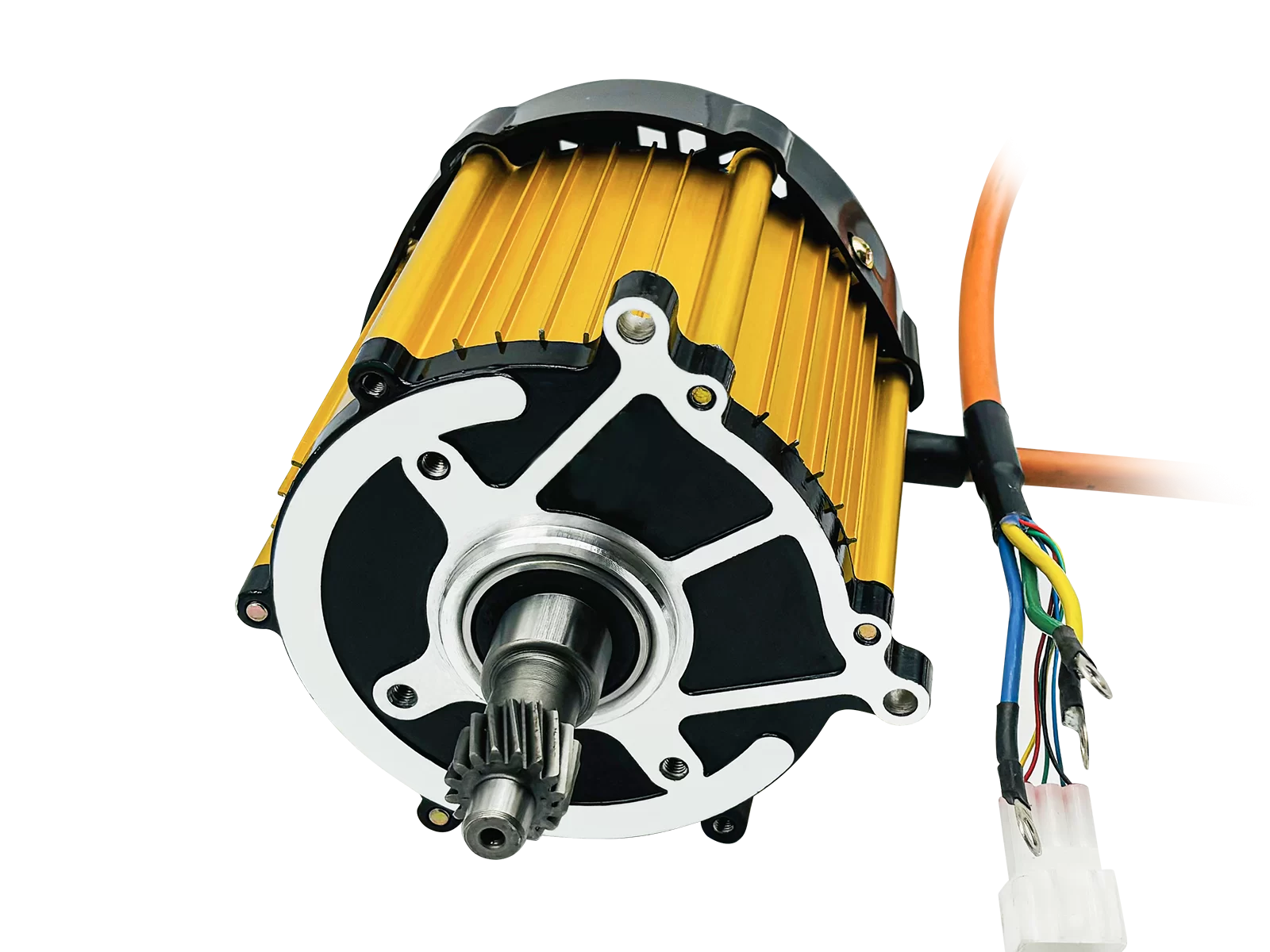

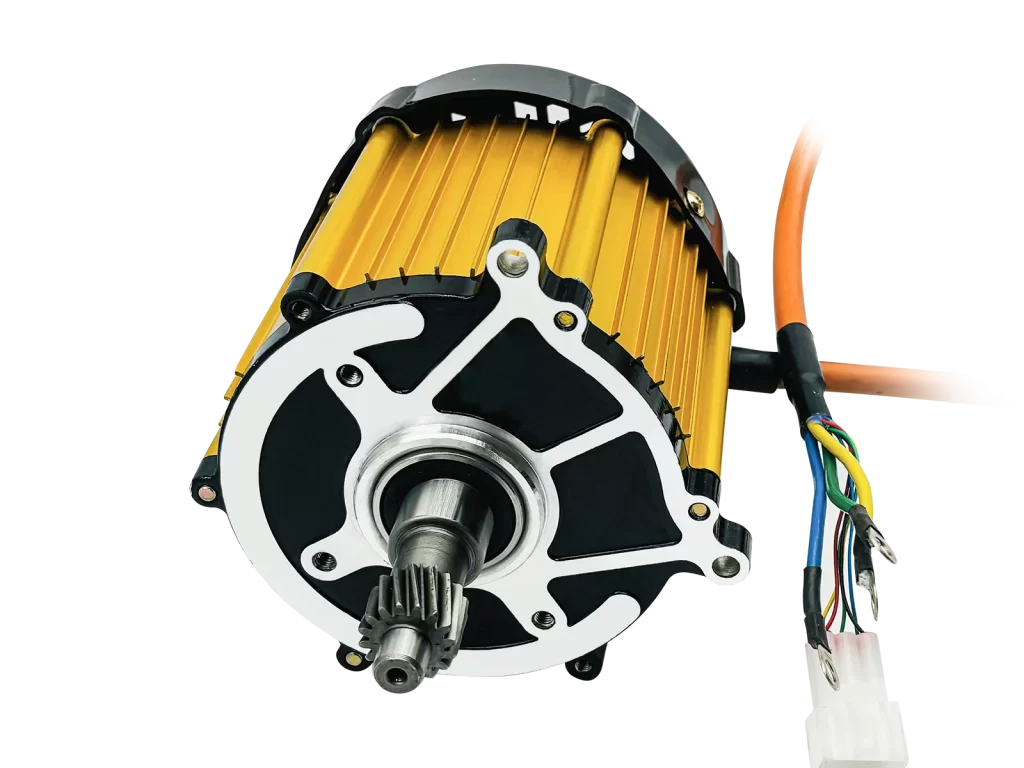

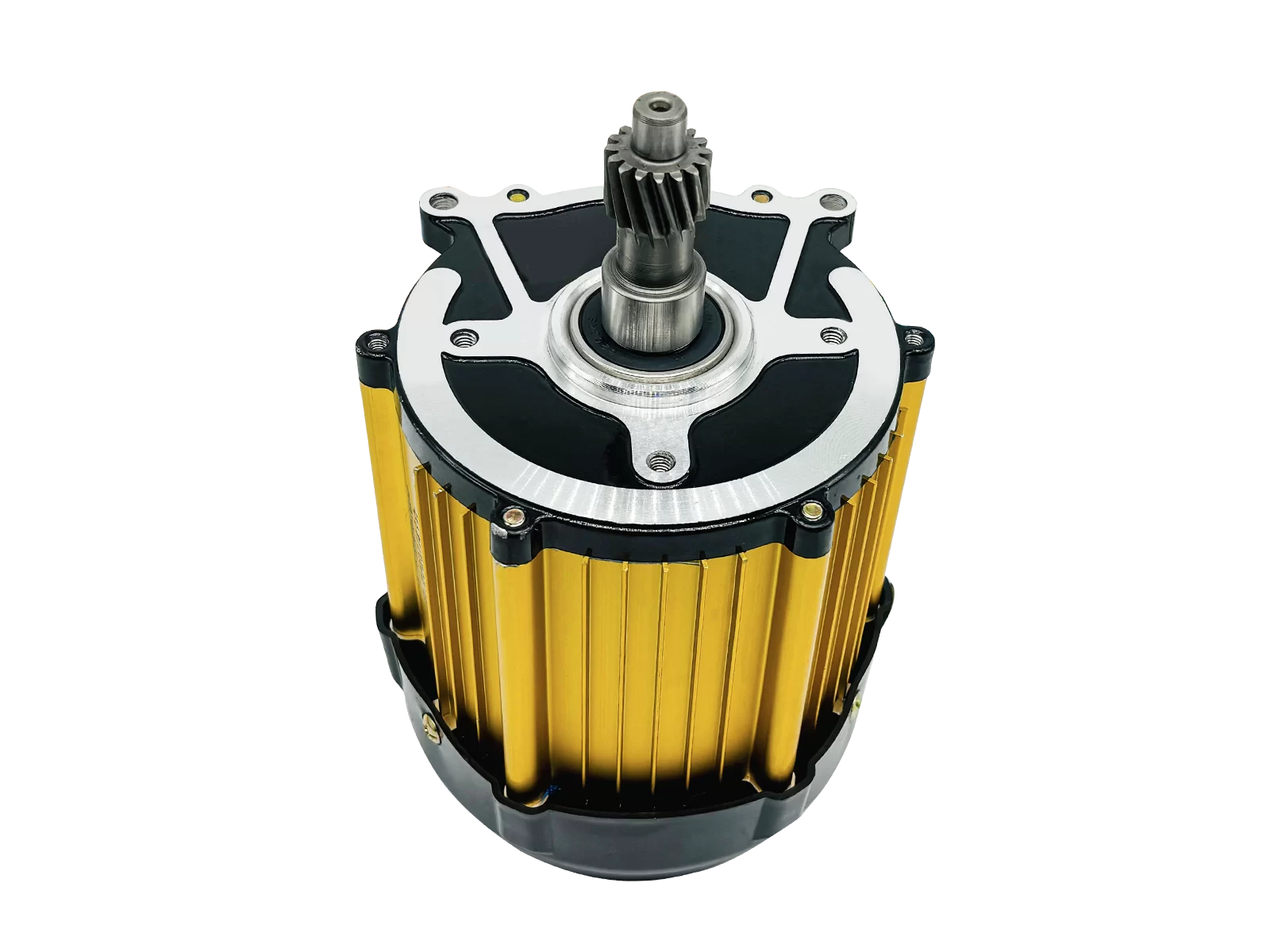

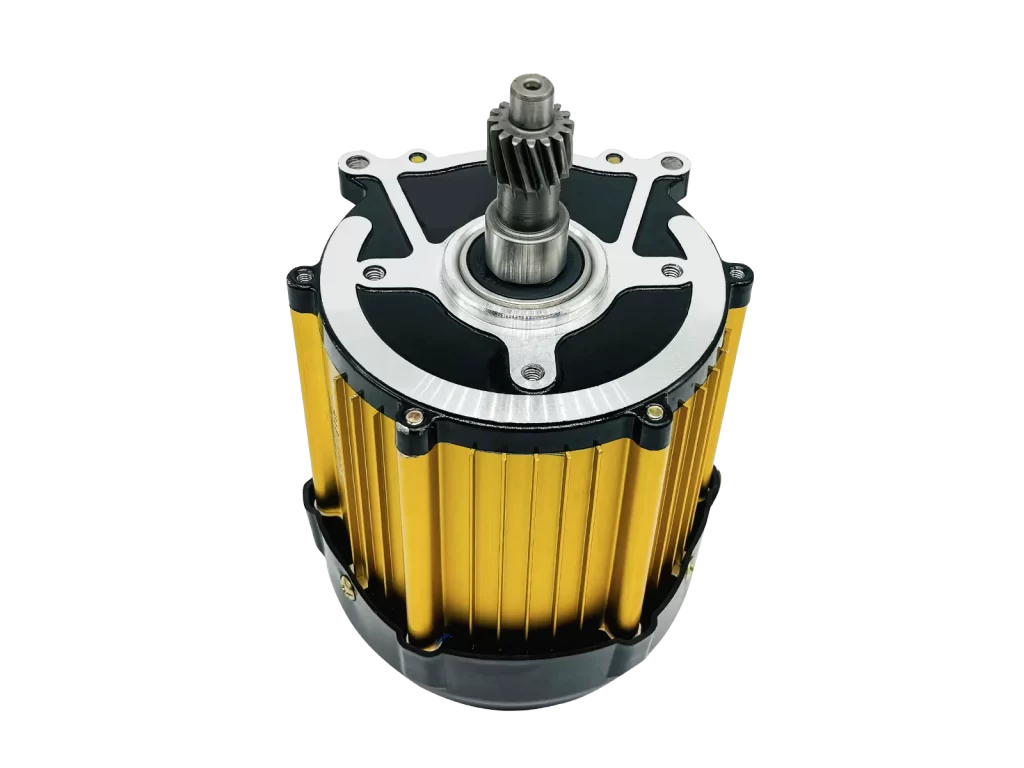

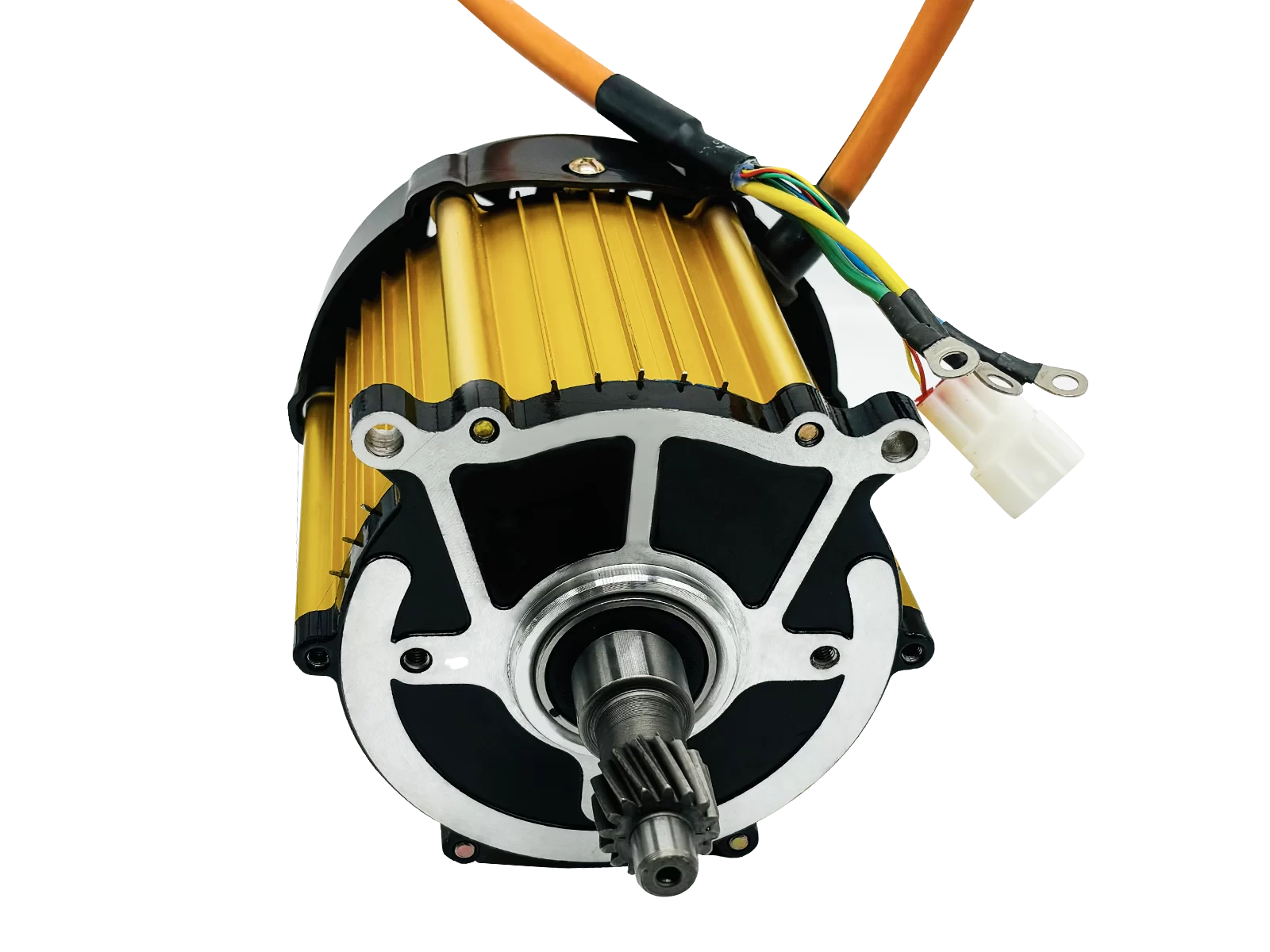

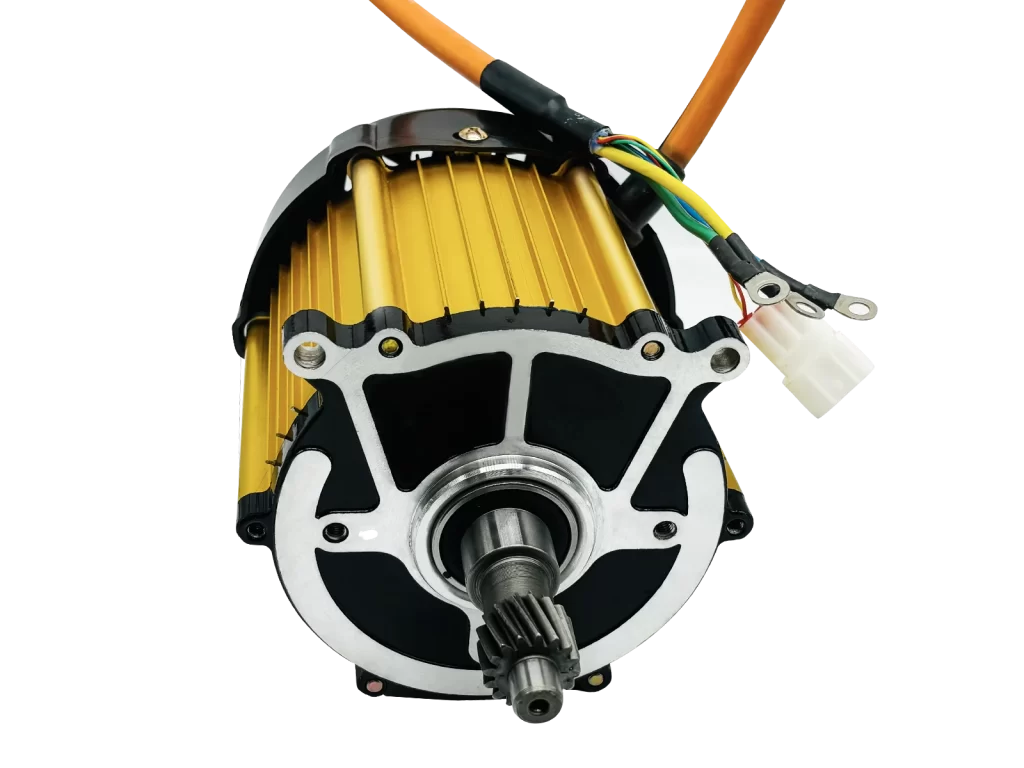

The Nanpu 120 BLDC Motor equipped on electric tricycles boasts several distinct advantages, which can be further elaborated as follows:
Instant High Torque: Enables swift acceleration and powerful start-ups, ideal for urban driving and heavy loads.
Heavy Load Capacity: Ensures stable performance even when fully loaded, enhancing work efficiency.
Cost-Effectiveness: Offers superior performance at a lower cost, making it attractive to budget-conscious consumers.
Proven Technology: Widely used and validated in the market, with high reliability and positive user feedback.
Product Parameter Specifications
Rated Voltage
48V~72V
Rated Power
350W~1500W
Peak Torque
11N.m~35N.m
Rated Speed
2500rpm~3500rpm
Rotor Height
25mm~70mm
Permanent Magnet Grade
38H
Motor Color
Silver, Black, Golden
Motor Shaft
16 Teeth,14 Teeth
Thermal Classification
E(350W~1000W),F(1200W~1500W)
Position Sensor
Hall
Ingress Protection
S2 60min(350W~1000W),S9(1200W~1500W)
Control Method
Square Wave
Pole Pairs
4
Product Working Environment
Save Temperature Range
-40℃～85℃
Working Temperature Range
Motor -40℃～55℃
Working Humidity Range
0～95%
Product Advantages
Prestigious Awards and Recognition:
1.Nanpu Motor are the only enterprise in Feng County’s industry to have received the Mayor’s Quality Award of Xuzhou City, showcasing our exceptional quality and industry leadership.
2.Our company complies with the IATF16949 Quality Management System certification, and our products possess CE certification, reinforcing our commitment to international quality standards and customer satisfaction.
Premium Raw Materials:
1.Our copper wire boasts a diameter of 0.56mm, 180L grade, withstanding temperatures up to 180℃, significantly higher than competitors’ 0.53mm, 130L grade wire prone to burnout beyond 130℃.
2.We employ high-quality 400-470 silicon steel sheets, while others utilize inferior 600-800 materials, resulting in lower iron losses, improved motor efficiency, and slower temperature rise during operation.
3.The aluminum barrels feature substantial thickness, enhancing strength, thermal dissipation, and slower motor temperature rise.
Product Drawing
Note: The above drawings are for 1200W BLDC Motor and are for reference only. The length of the motor varies depending on the power.
Note: The above drawings are for 1200W BLDC Motor and are for reference only. The length of the motor varies depending on the power.
