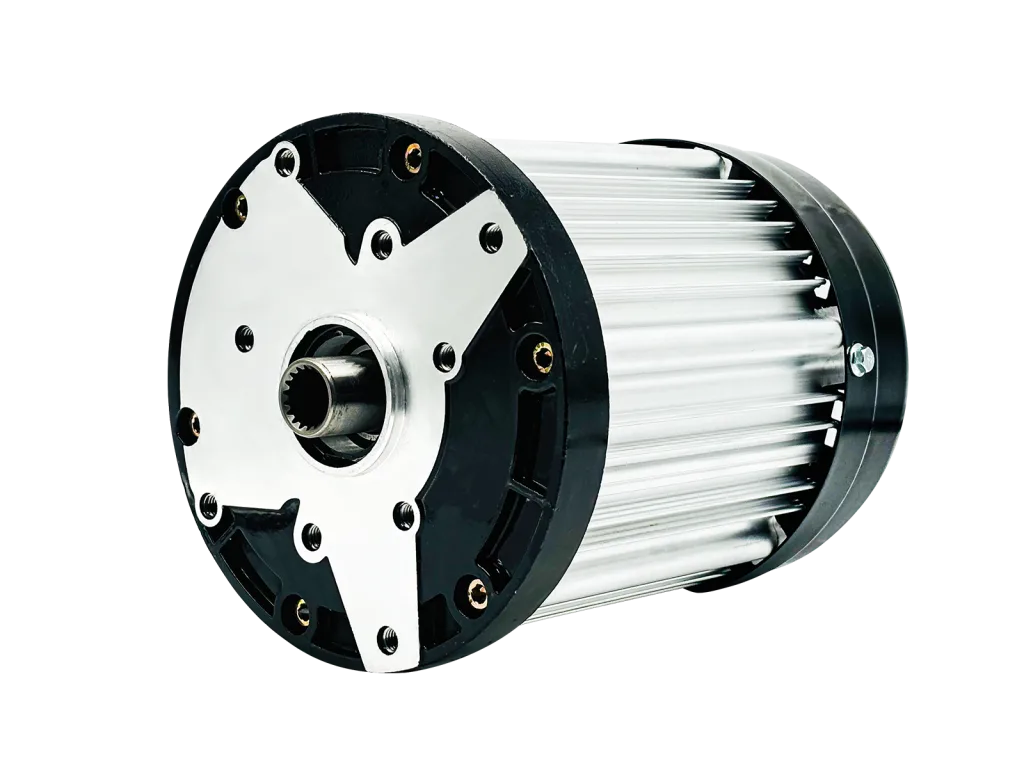

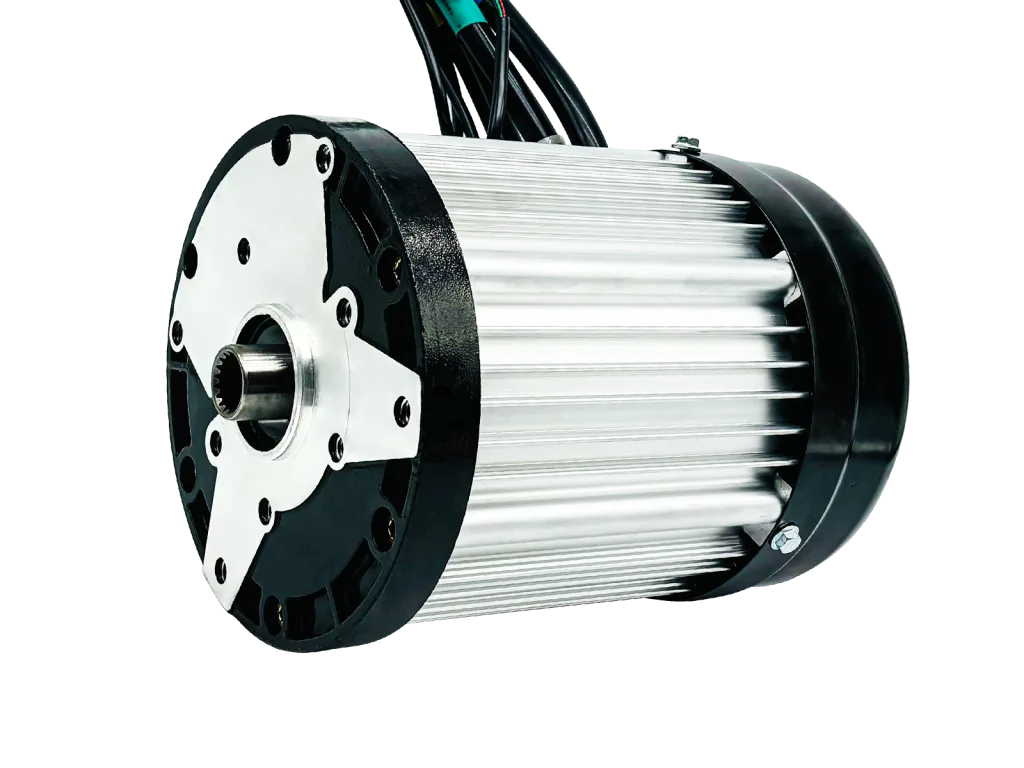

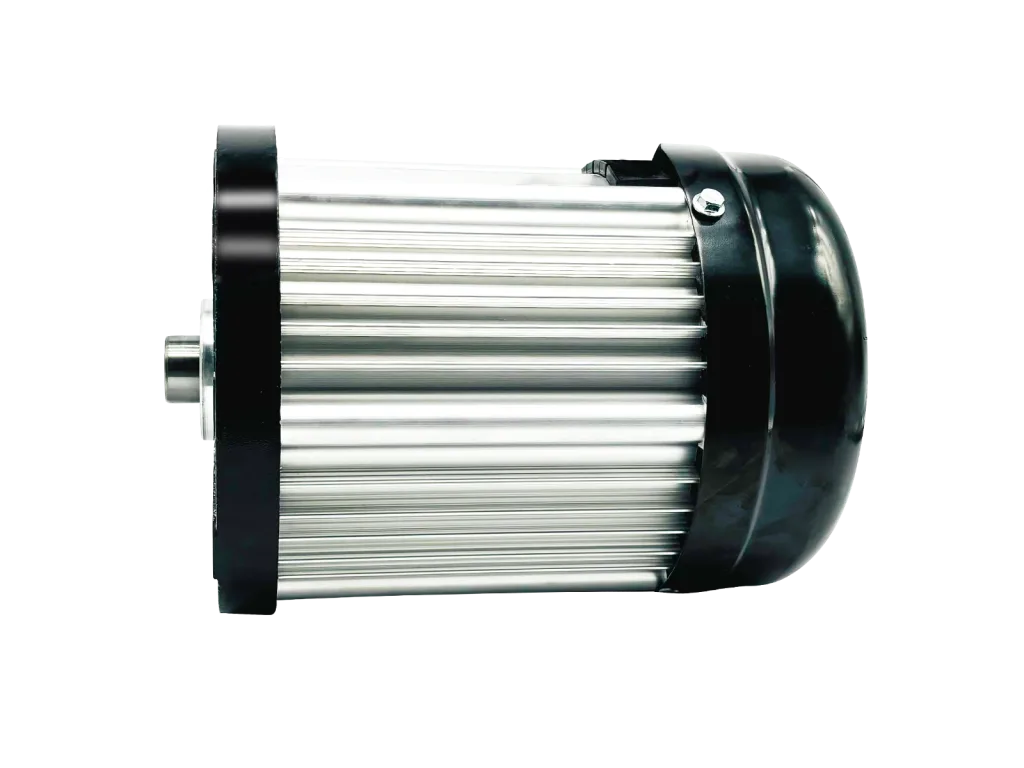

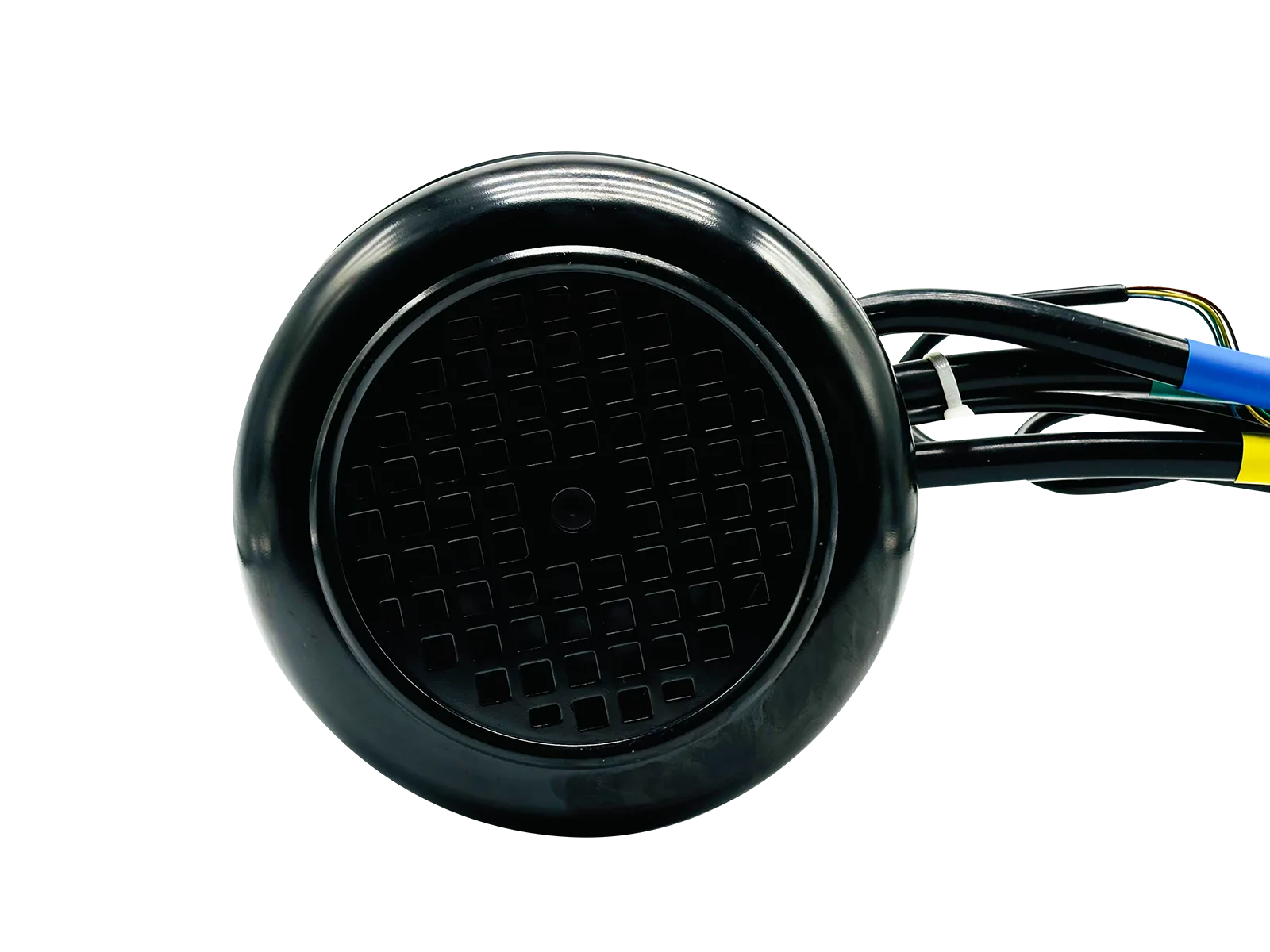

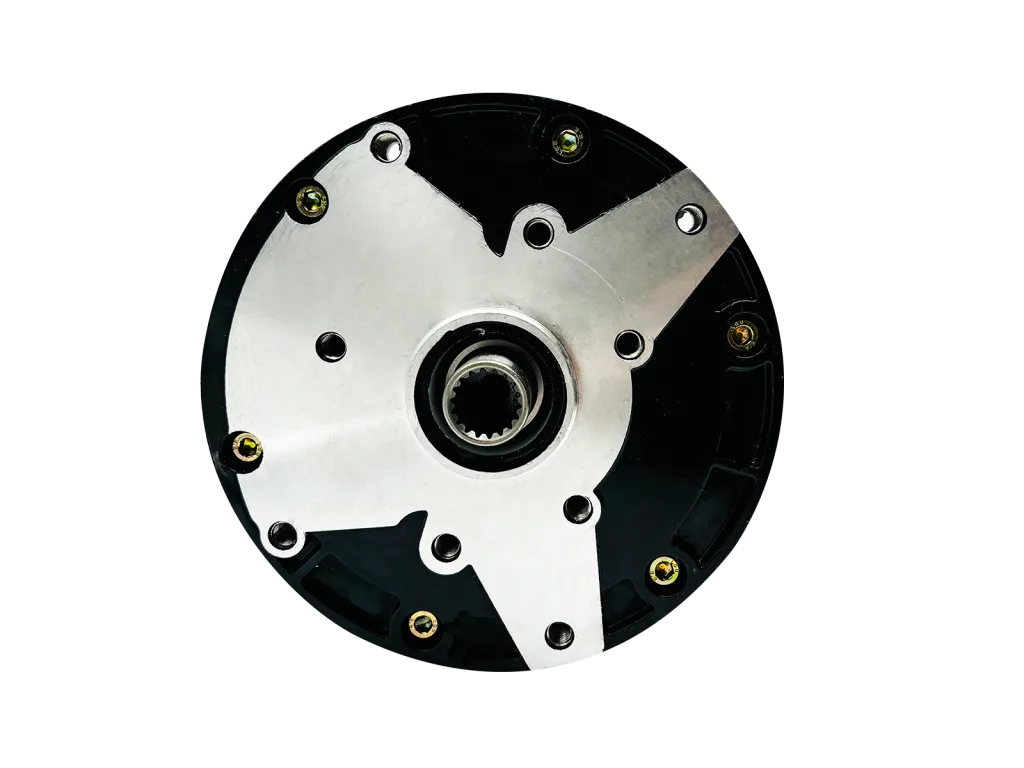

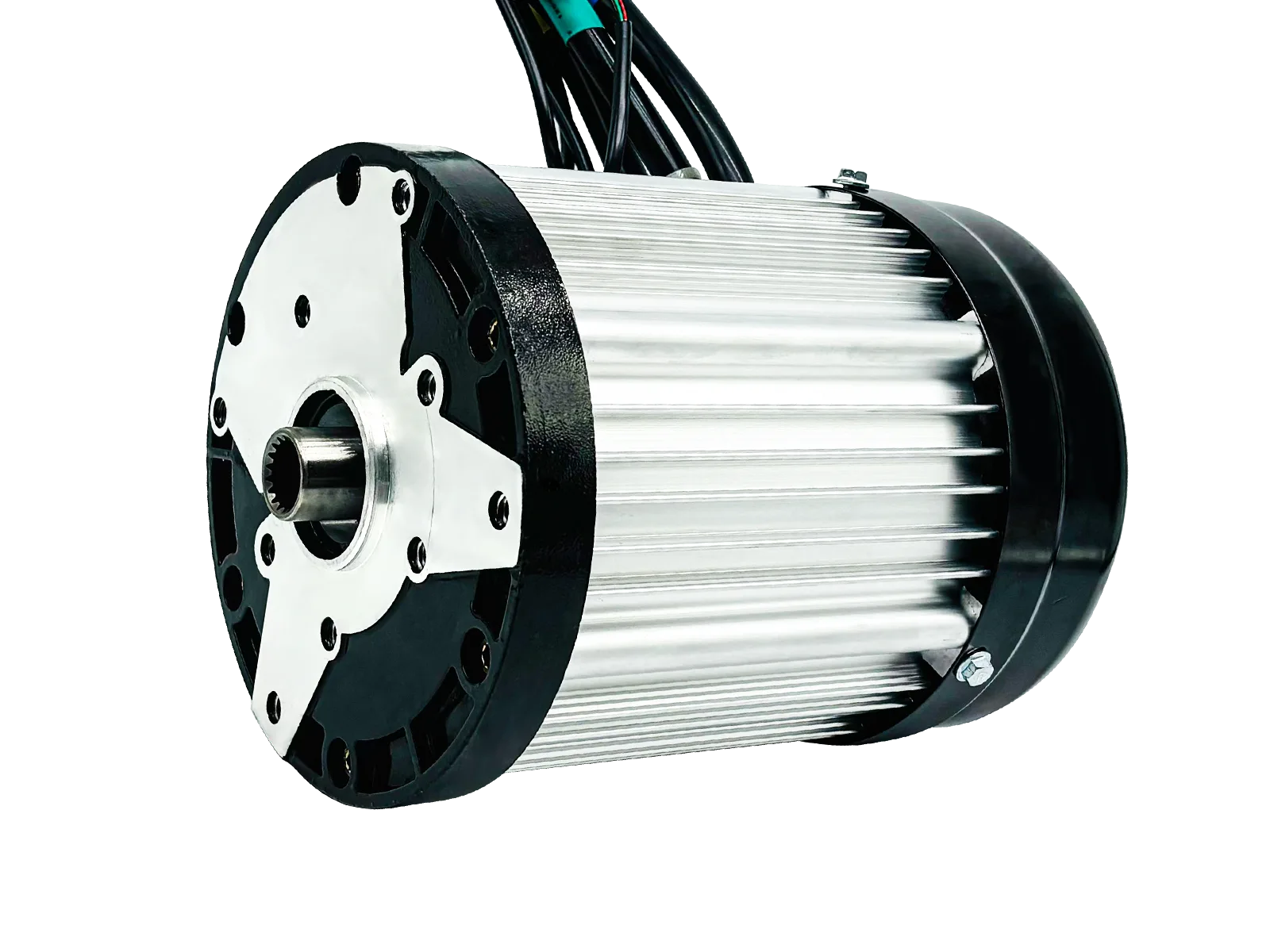

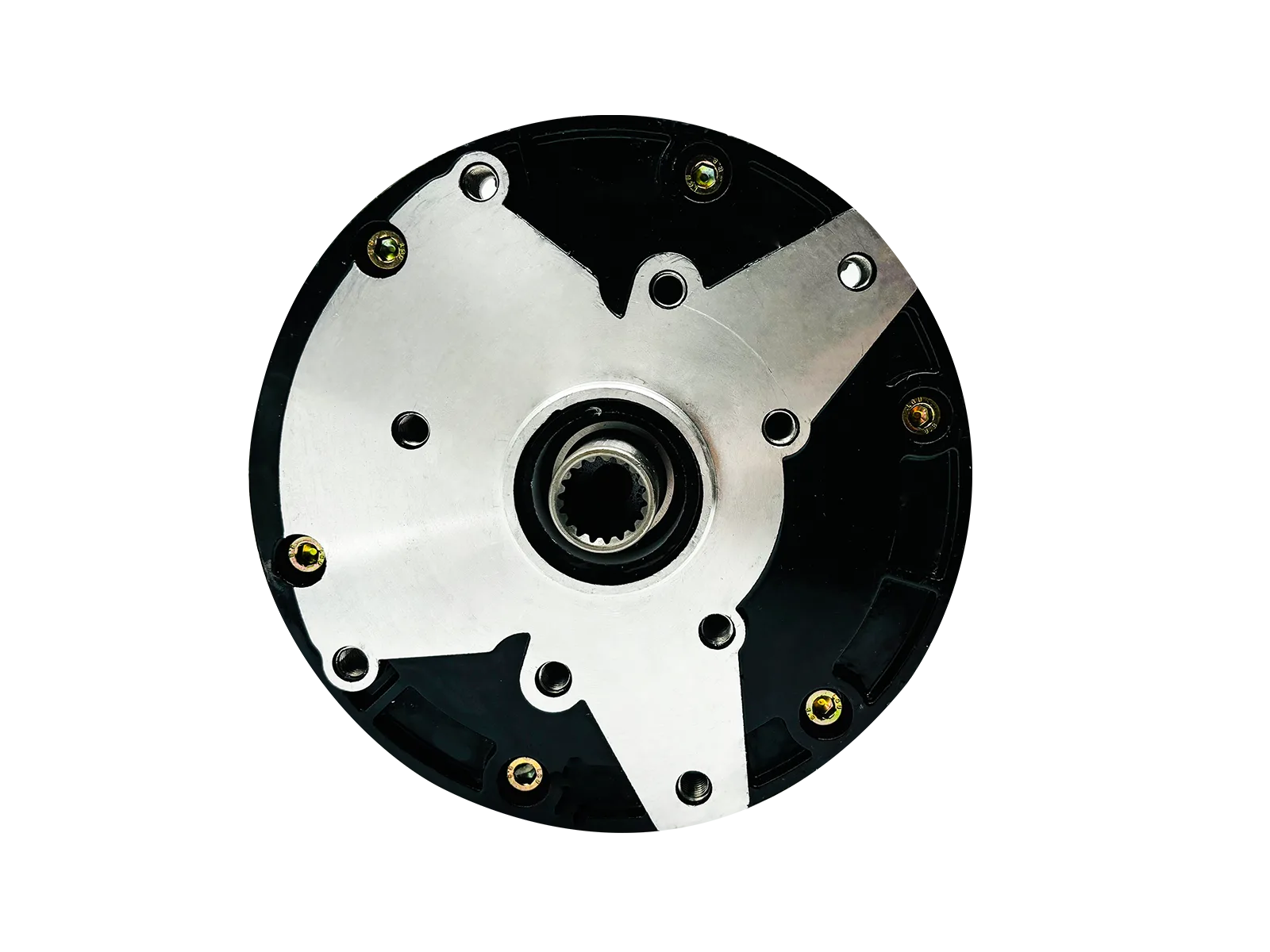

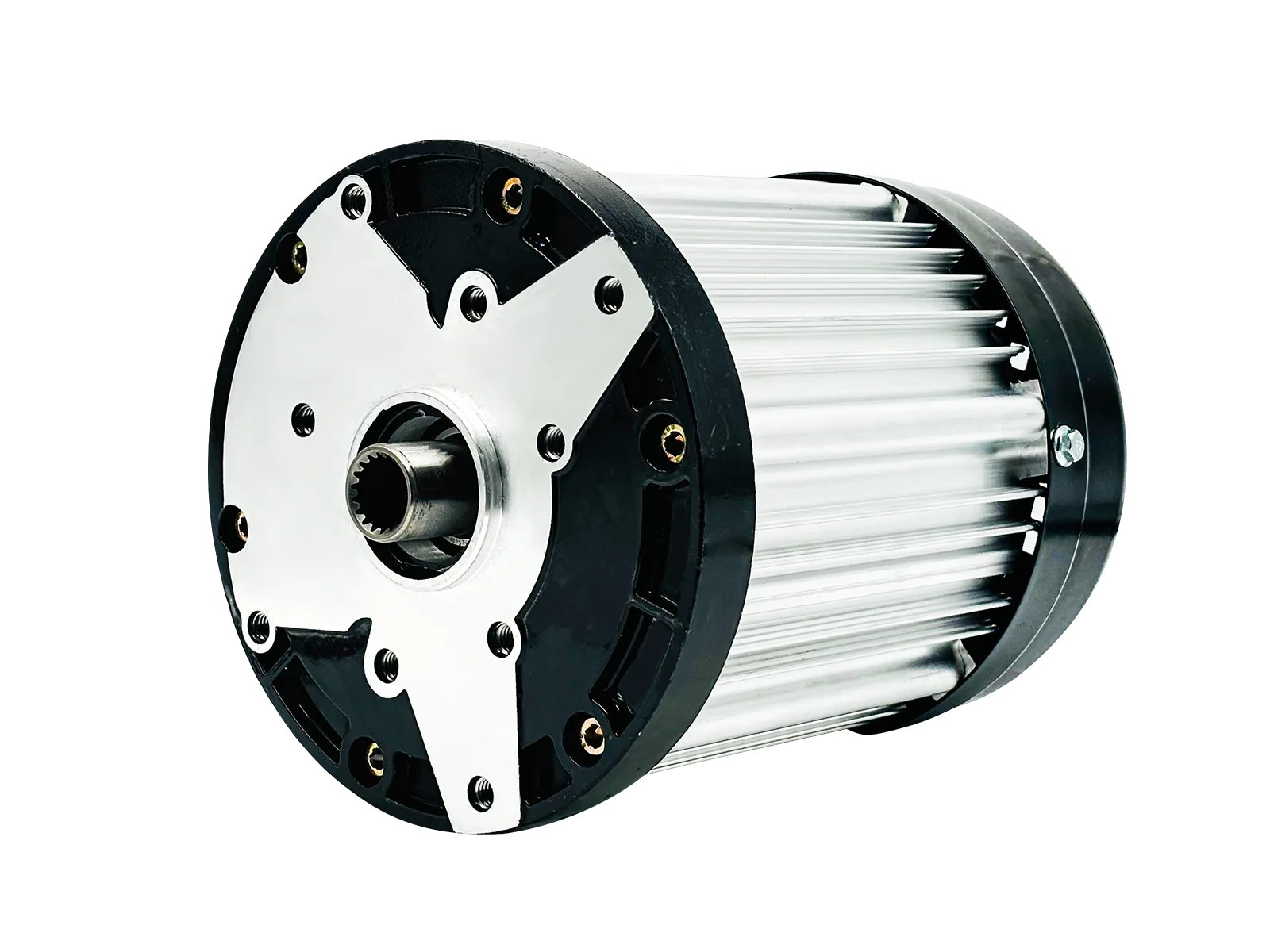

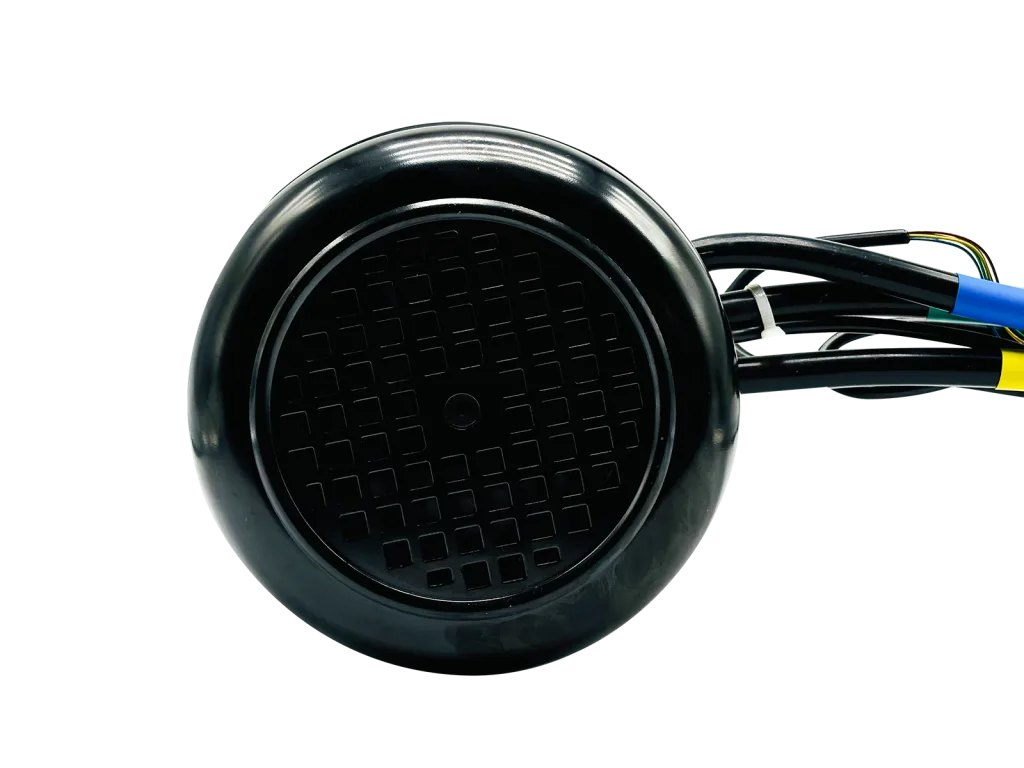

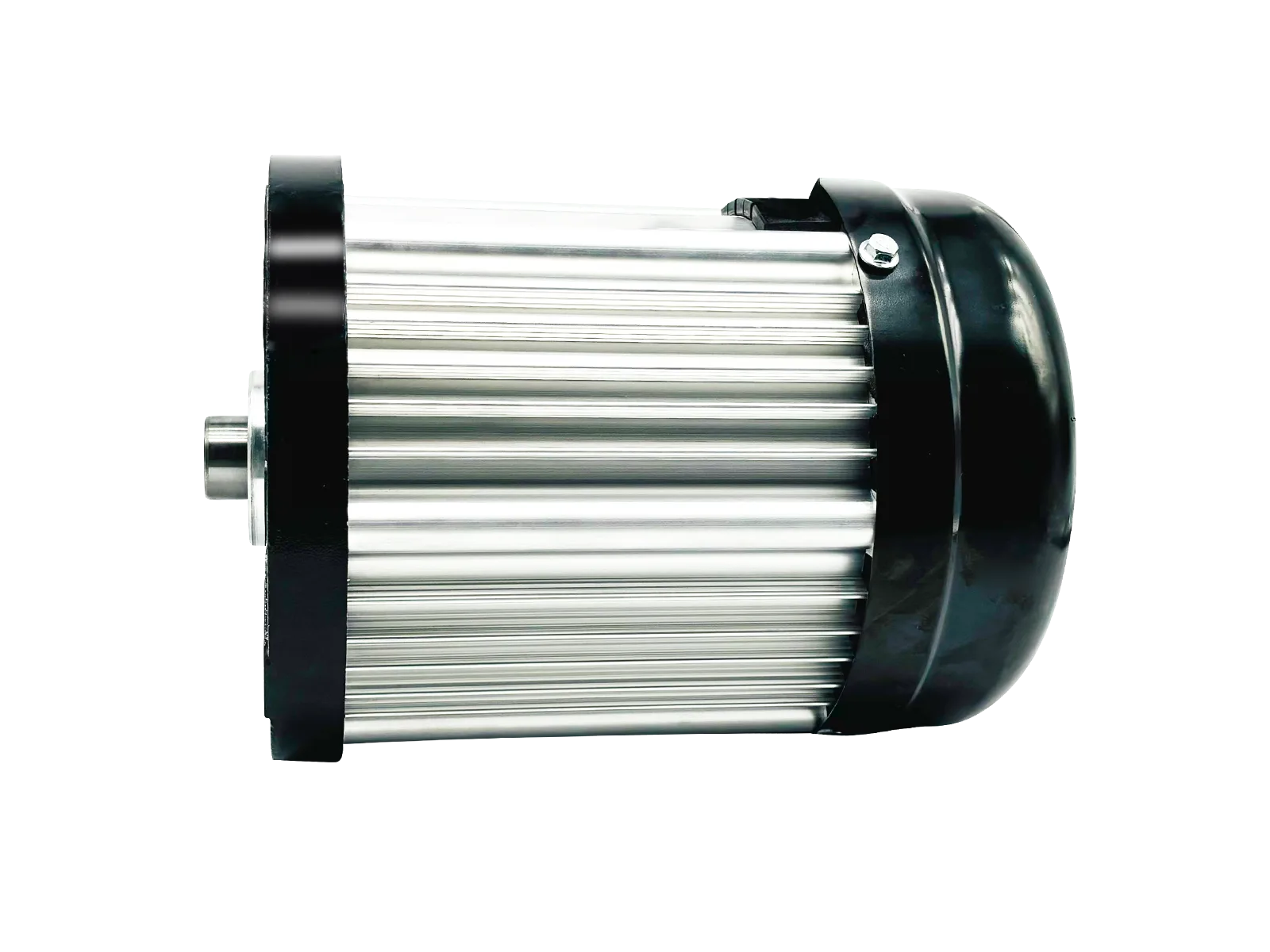

138 BLDC Motorr(Brushless DC Motor)is a high-power motor independently developed by Nanpu Motor for heavy-duty, high-speed electric tricycles, rickshaws, and tuk tuks. This motor can be selected from two types: high-speed and high torque, and can be connected to various gearboxes. If you need a high-power motor, Nanpu Motor will be your best choice for cooperation in China.

Product introduction

138 BLDC Motor is a high-power, high-speed, and high torque motor. According to the different stator structures, motors are divided into two types: straight slot stator and skewed slot stator. Straight slot motors have high torque and low speed, making them suitable for heavy-duty freight transportation; The inclined slot motor starts smoothly and has low noise, making it suitable for passenger tricycles such as rickshaws. The power range of the 138 BLDC Motor is 1000W~3500W.

Product Parameter Specifications

Product Working Environment

Product Advantages

•  High Efficiency
  1.High Power Density: BLDC motors utilize permanent magnets for excitation, enabling them to deliver greater power output within the same volume or weight, resulting in superior efficiency.
  2.Low Friction Losses: The brushless design eliminates the friction losses associated with brushes and commutators in traditional DC motors, enhancing overall motor efficiency. This high efficiency allows the 138 BLDC Motor to operate with lower energy consumption and increased stability over extended periods.
• High Torque Output
  1.High Torque Density: The stronger magnetic field generated by the permanent magnets in BLDC motors enables them to provide greater torque output within the same volume or weight. This characteristic of the 138 BLDC Motor makes it suitable for heavy-duty applications requiring high torque.
• Excellent Operational Characteristics
  1.Smooth Start-ups: Especially with the skewed-slot stator, the 138 BLDC Motor offers smoother start-ups, reducing initial shock and vibration, thereby enhancing ride comfort.
  2.Low Noise: The brushless design eliminates brush-related noise, significantly reducing the overall operational noise of the motor. This feature is crucial for applications requiring a low-noise environment, such as passenger tricycles.
• Longevity
  1.No Wearing Parts: The brushless design eliminates the wearing parts (brushes and commutators) found in traditional DC motors, extending the motor’s service life.
  2.High Reliability: Electronic controllers handle commutation in BLDC motors, simplifying the mechanical components and reducing failure rates, resulting in increased overall reliability.
• Versatile Application Range
  1.Broad Power Range: With a power range of 1000W to 3500W, the 138 BLDC Motor can cater to various power requirements across different applications.
  2.Diverse Applications: From heavy-duty cargo transportation to passenger tricycles, the 138 BLDC Motor’s outstanding performance makes it suitable for a wide range of applications in electric vehicles, industrial automation, and transportation sectors.
  In summary, the 138 BLDC Motor’s high efficiency, high torque output, excellent operational characteristics, longevity, and versatile application range position it as an ideal choice for numerous applications requiring high-performance electric motors.
