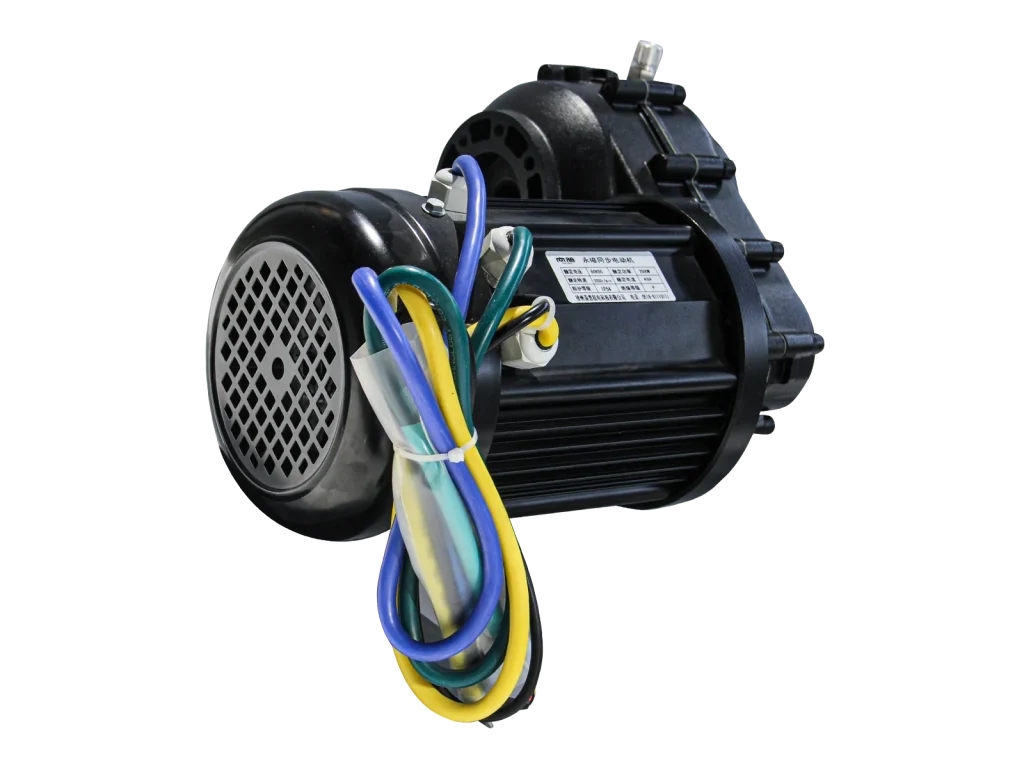

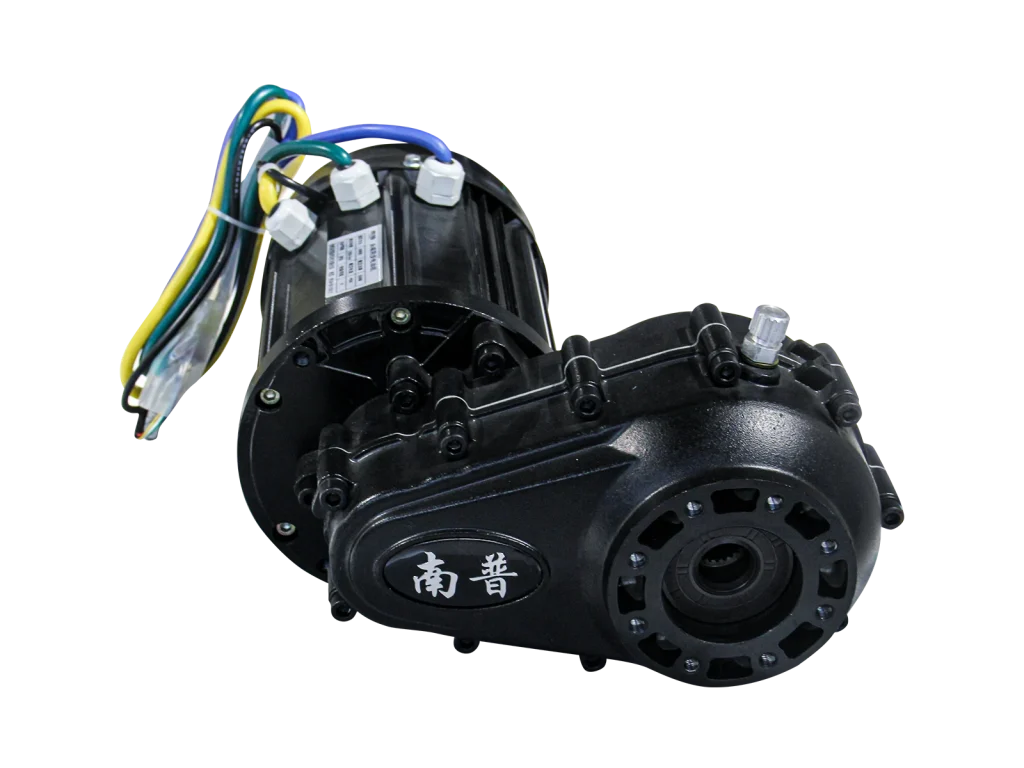

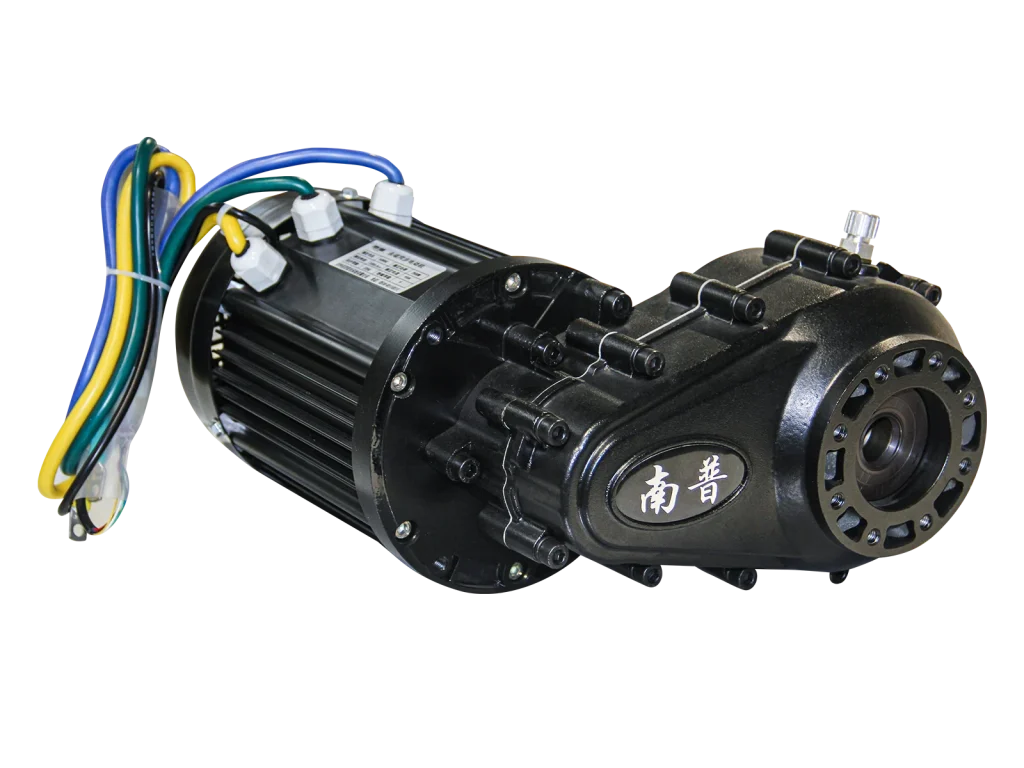

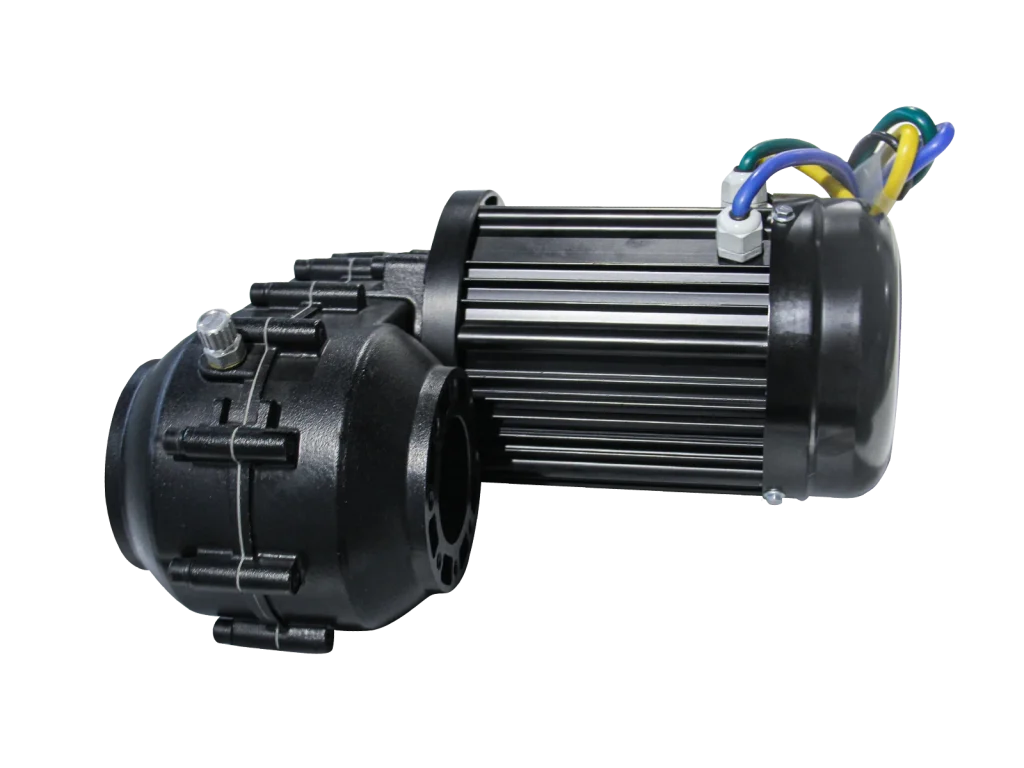

138 PMSM Motor（Permanent Magnet Synchronous Motor） is a high-power motor independently developed by Nanpu Motor for heavy-duty, high-speed electric tricycles, rickshaws, and tuk tuks. The rotor of the motor is embedded with V-shaped magnetic steel and a sine wave controller, ensuring a smooth start. Our 138 PMSM Motor has a great advantage among all peers in China and has been unanimously recognized by countries such as China, India, Pakistan, Europe, and America.

Product introduction

138 PMSM Motor is a high-power, high-speed, and high torque motor. The rated power is 1200W~3000W, capable of weak magnetization up to 5000 r/min, with a wide speed range, suitable for high torque working conditions, new energy freight electric vehicles, low-speed passenger cars, electric tricycles, rickshaws, ATVs, golf carts…

Product Parameter Specifications

Product Working Environment

Product Advantages

Nanpu 138 PMSM Motor has the characteristics of high power, high speed, and high torque, and is widely used in various fields such as new energy freight electric vehicles, low-speed passenger cars, electric tricycles, and rickshaws. The following is an overview of the advantages of this motor.

• High power and high efficiency:

1.Although the rated power range you mentioned is 1000W~3000W, considering the characteristics of 138 PMSM motors, their actual output power may be adjusted due to application conditions and motor design. 138 PMSM Motor use permanent magnets to generate magnetic fields, without the need for excitation coils and excitation currents, thus having high efficiency and power factor.

2.High efficiency means that 138 PMSM Motor can consume less electricity at the same output power, thereby reducing operating costs and improving energy efficiency.

• High speed and high torque:

1.The motor can be demagnetized to 5000rpm, indicating that it has a high speed range and is suitable for application scenarios that require fast response and high-speed operation.

2.At the same time, the high torque characteristics of 138 PMSM motors enable them to perform well under high torque conditions, and can cope with the demands of heavy loads and complex working conditions.

• Wide speed range:

1.The speed of 138 PMSM Motor always maintains an accurate synchronization relationship with the power frequency, and a wide range of speed regulation can be achieved by controlling the power frequency. This characteristic enables the motor to flexibly respond to various speed and load changes, meeting the needs of complex applications.

• High control accuracy:

1.138 PMSM motor use sine wave drive currents to achieve more precise control of motor speed and torque. This high-precision control feature is particularly important for application scenarios that require precise control.

• Fast response speed:

1.Due to the direct coupling between the rotor of 138 PMSM Motor and the magnetic field, its response speed is very fast. This gives the motor significant advantages in application scenarios that require fast starting, braking, or reversing.

• Simple structure and high reliability:

1.The 138 PMSM Motor eliminates the excitation device, simplifies the structure, and improves reliability. Compared with DC motors, it does not have vulnerable parts such as commutators and brushes, reducing mechanical losses and friction, and extending the service life of the motor.

• Energy conservation and environmental protection:

1.Due to its high efficiency and low loss characteristics,138 PMSM Motor can significantly reduce energy consumption and carbon emissions during operation, meeting the requirements of modern energy conservation and environmental protection.

In summary, Nanpu138 PMSM Motor has broad application prospects and market competitiveness in the fields of new energy freight electric vehicles, low-speed passenger cars, electric tricycles, etc. due to its advantages of high power, high speed, high torque, wide speed range, high control accuracy, fast response speed, and simple and reliable structure.

Product Drawing

Product Video
