INTRODUCTION

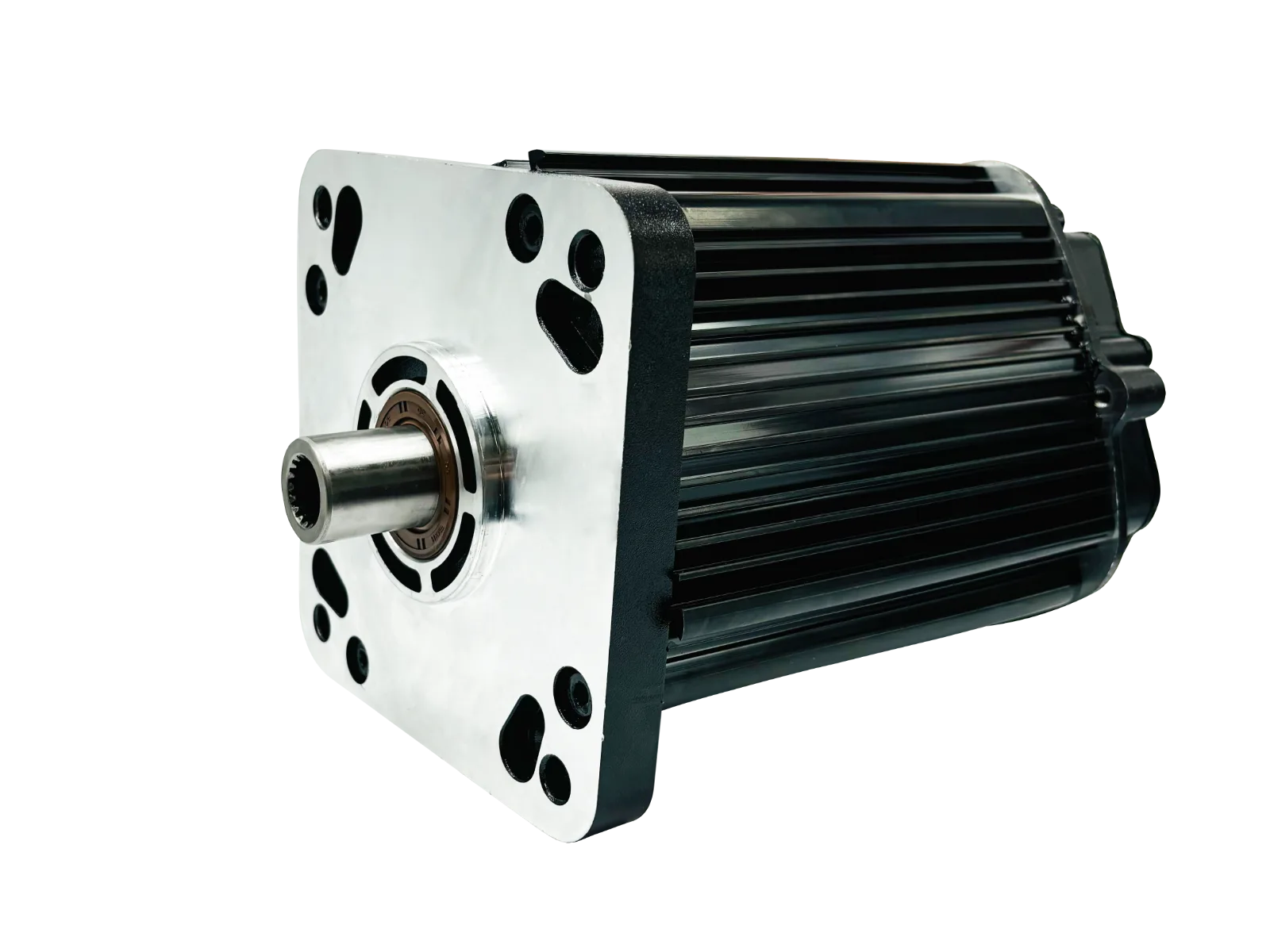

155 PMSM Motor(Permanent Magnet Synchronous Motor)is a high-power and high-performance permanent magnet synchronous motor designed by Nnanpu Motor specifically for low-speed new energy vehicles, golf carts, electric motorcycles, ATVs, UTVs, and electric forklifts. Nanpu 155 PMSM Motor has been widely used in various fields and is the best choice for high-performance motors. If you need high-power, high-performance, high-speed, and high torque motors, then Nanpu Motor will become your best partner in China

Product introduction

The Nanpu 155 PMSM (Permanent Magnet Synchronous Motor) is a high-power, high-performance motor specifically engineered by Nanpu Motor for a diverse range of applications, including low-speed new energy vehicles, golf carts, electric motorcycles, ATVs (All-Terrain Vehicles), UTVs (Utility Terrain Vehicles), and electric forklifts. Widely adopted across various industries, the Nanpu 155 PMSM Motor stands as the premier choice for high-performance motor requirements. If you’re seeking motors with high power, performance, speed, and torque capabilities, Nanpu Motor is your ideal partner in China.

Product Parameter Specifications

Rated Voltage	48V~96V	Rated Power	6000W~13000W
Peak Torque	70N.m~120N.m	Rated Speed	3000rpm~7000rpm
Rotor Height	90mm~140mm	Pole Pairs	4
Motor Color	Silver	Motor Shaft	18 Teeth
Thermal Classification	H	Position Sensor	Encoder
Ingress Protection	S9	Control Method	Sine Wave, Vector

Product Working Environment

Save Temperature Range	-40℃～85℃
Working Temperature Range	Motor -40℃～55℃
Working Humidity Range	0～95%

Product Advantages

High Efficiency

1.The Nanpu 155 PMSM Motor boasts exceptional efficiency due to its use of high-performance permanent magnets, eliminating the need for additional excitation current. This results in reduced copper and iron losses, typically achieving 5% to 10% higher efficiency compared to conventional motors.

High Power Density

The motor’s compact rotor design and ability to generate high magnetic flux density enable it to deliver substantial power output within a small footprint and weight. This is crucial for applications where space and weight are limited.

Excellent Dynamic Response

With a high torque-to-inertia ratio, the Nanpu 155 PMSM Motor responds swiftly to control signals, enabling rapid start-ups, stops, and reversals. This is advantageous in applications requiring frequent speed and torque adjustments, such as electric vehicles and industrial automation.

Wide Speed Range

The motor offers a broad range of adjustable speeds through varying the current frequency and amplitude, ensuring precise control over rotational speed and torque.

Low Noise and Vibration

The simple rotor structure and smooth operation of the Nanpu 155 PMSM Motor contribute to reduced noise and vibration levels, making it suitable for environments requiring quiet operation.

High Reliability

The motor’s straightforward design minimizes mechanical failures, while the stability of permanent magnet materials ensures reliable performance over time.

Energy Saving and Environmental Friendliness

The high efficiency of the motor translates into lower energy consumption and reduced carbon emissions. Although the production of rare earth magnets may have environmental impacts, the overall environmental performance of PMSM motors is generally superior to traditional motors.

Customizable Design

The Nanpu 155 PMSM Motor can be tailored to specific application requirements, including adjustments to motor size, power output, speed, and torque, ensuring optimal performance for each unique use case.
