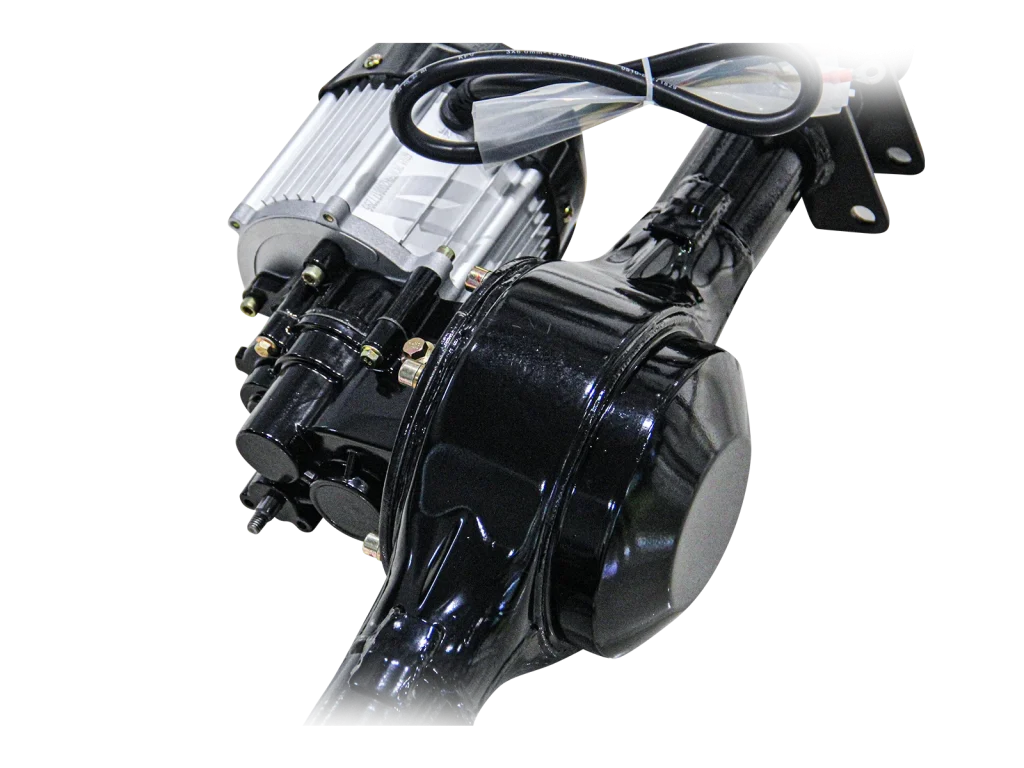

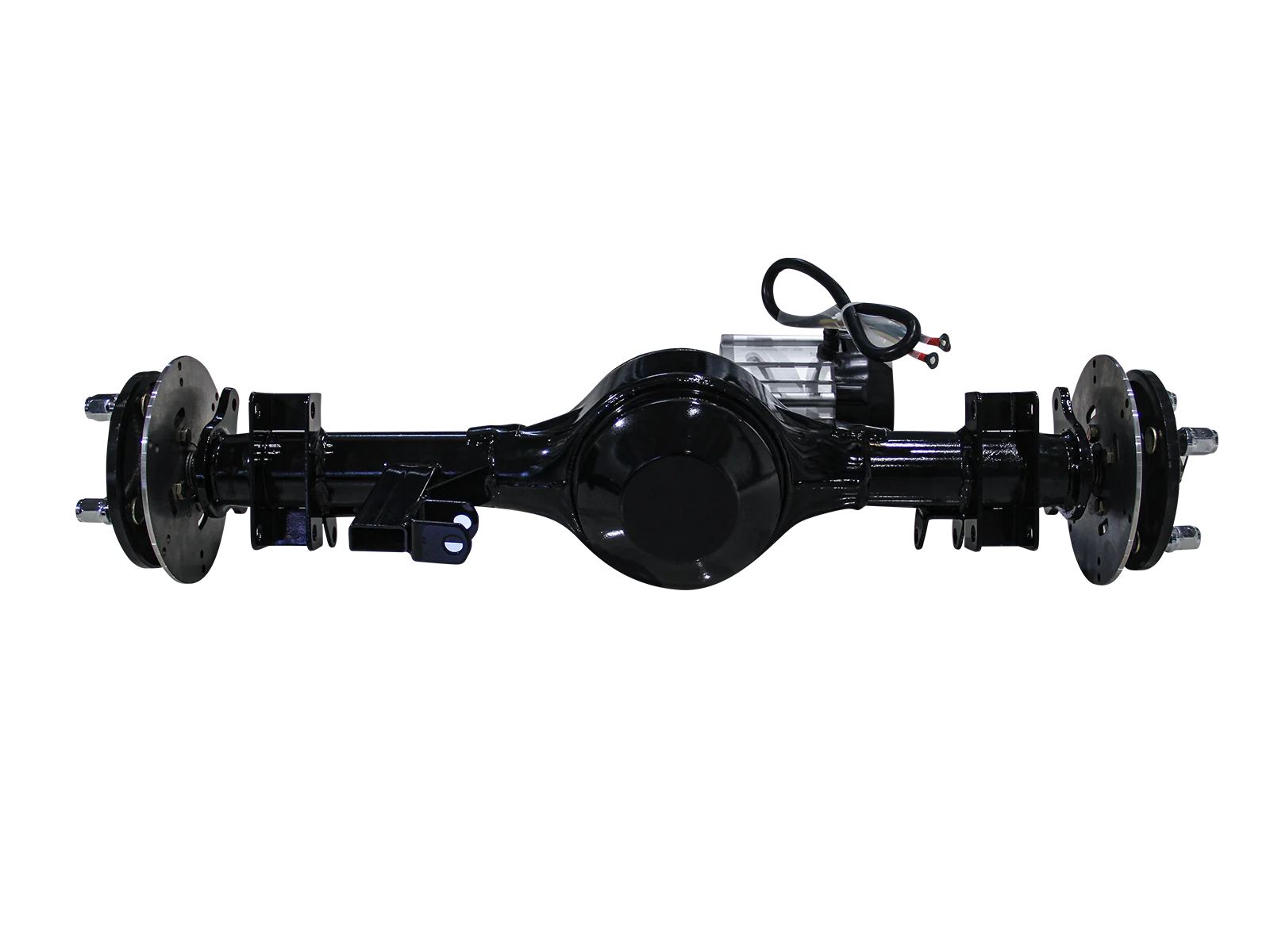

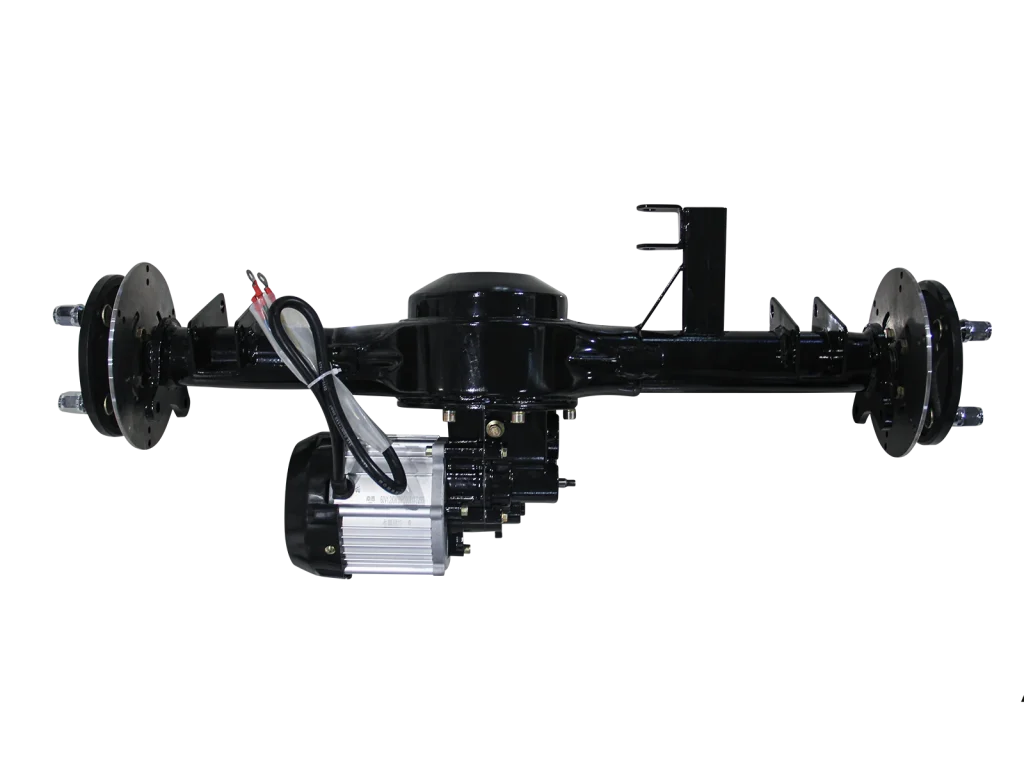

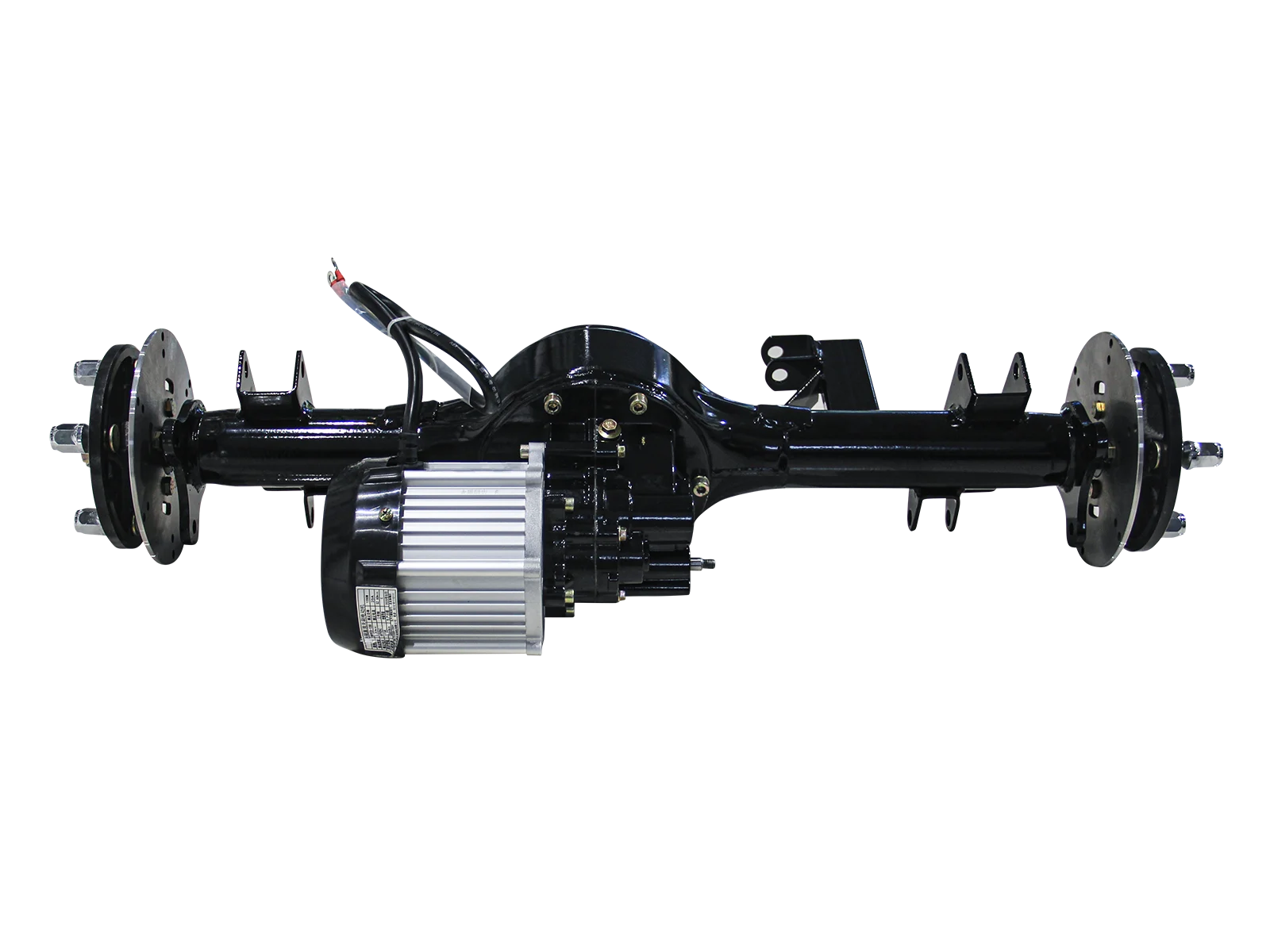

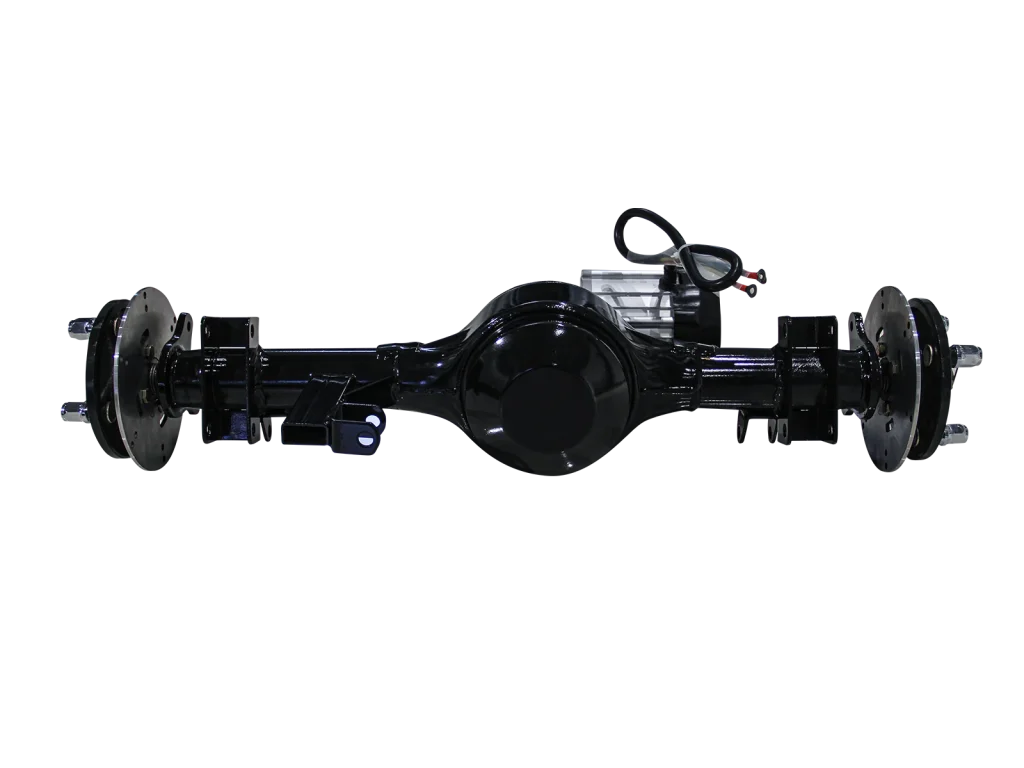

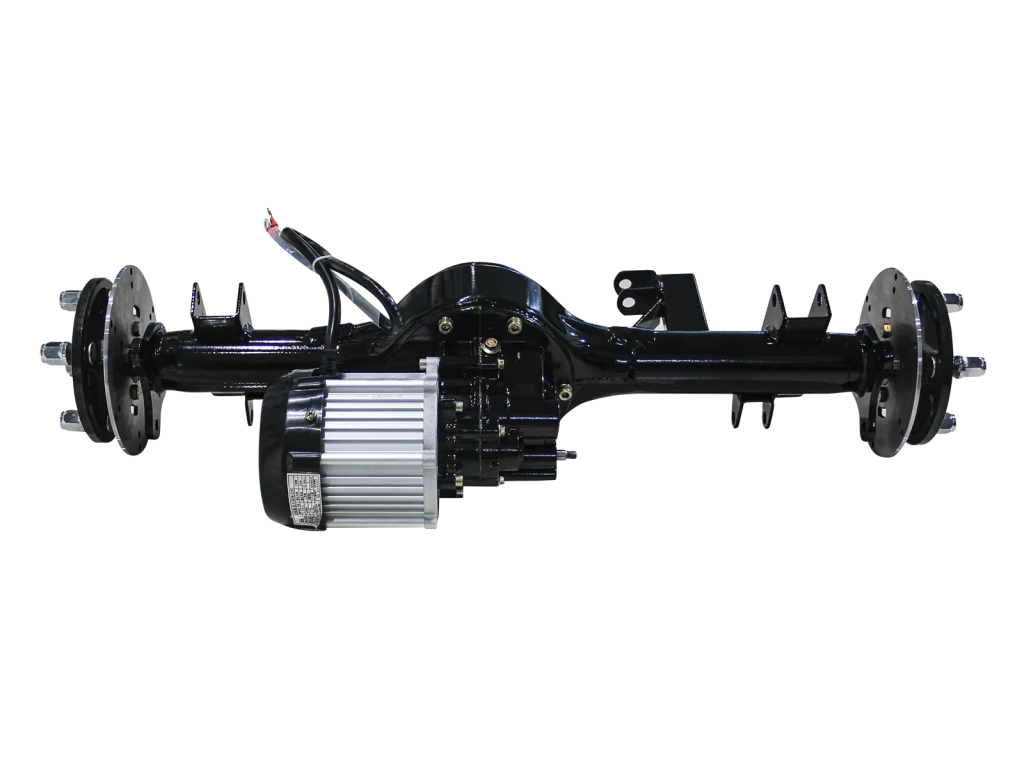

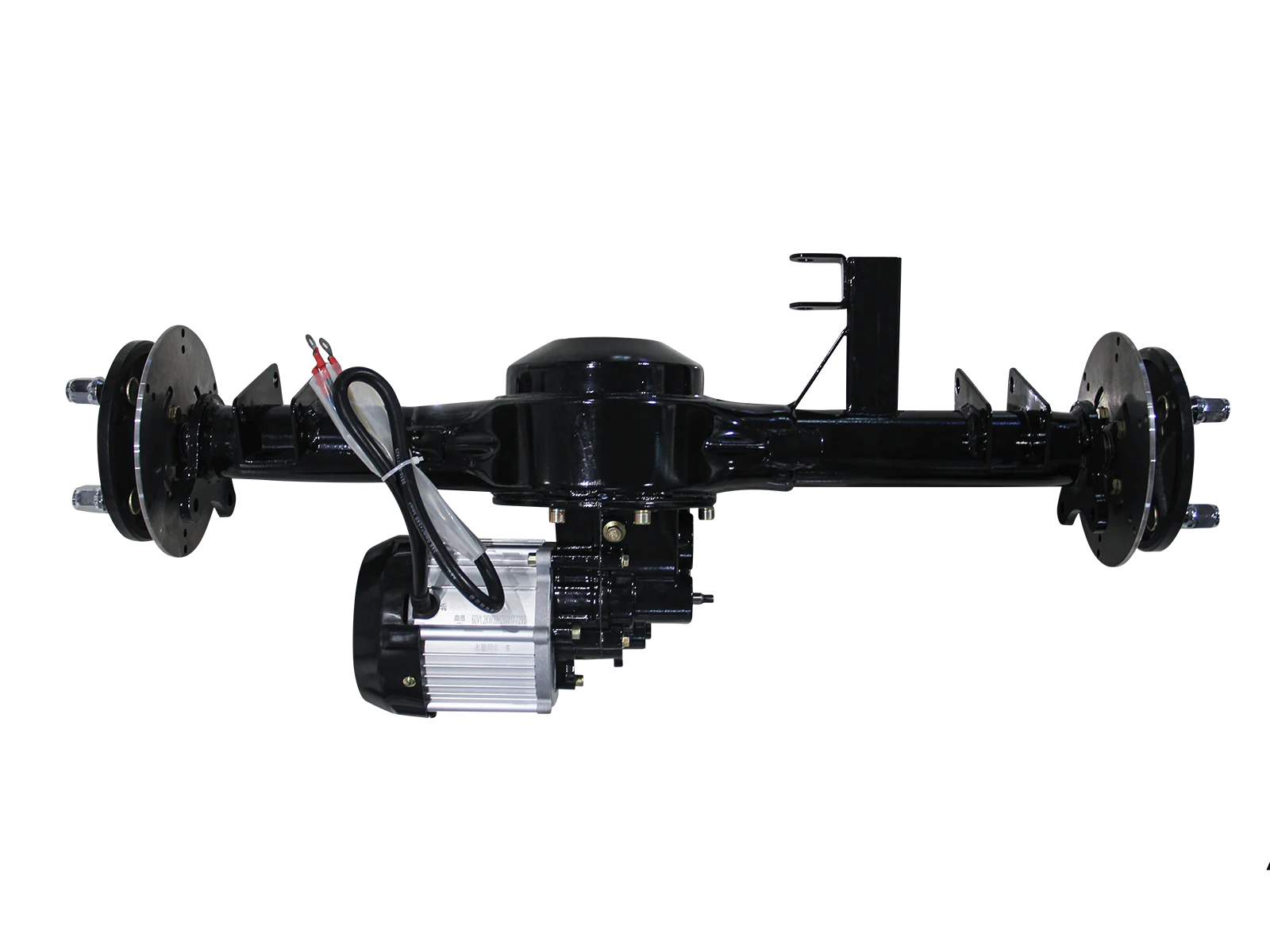

Integrated Disc Brake Rear Axle is a disc brake rear axle designed by Nanpu for passenger electric tricycles, rickshaws, tuks, ATVs, UTVs, golf carts, etc. It adopts hydraulic disc brakes, with high braking torque, sensitive braking, good heat dissipation effect, and stable braking efficiency.
Nanpu is a brand and manufacturer of Integrated Disc Brake Rear Axle in China. This rear axle has a good price advantage. If you want to learn more about this rear axle, please send us a message to contact us.

Product introduction

Definition and Composition

• Definition: A disc brake rear axle is the rear drive axle of a vehicle that features a disc brake system for braking, driving, load-bearing, and differential functions.

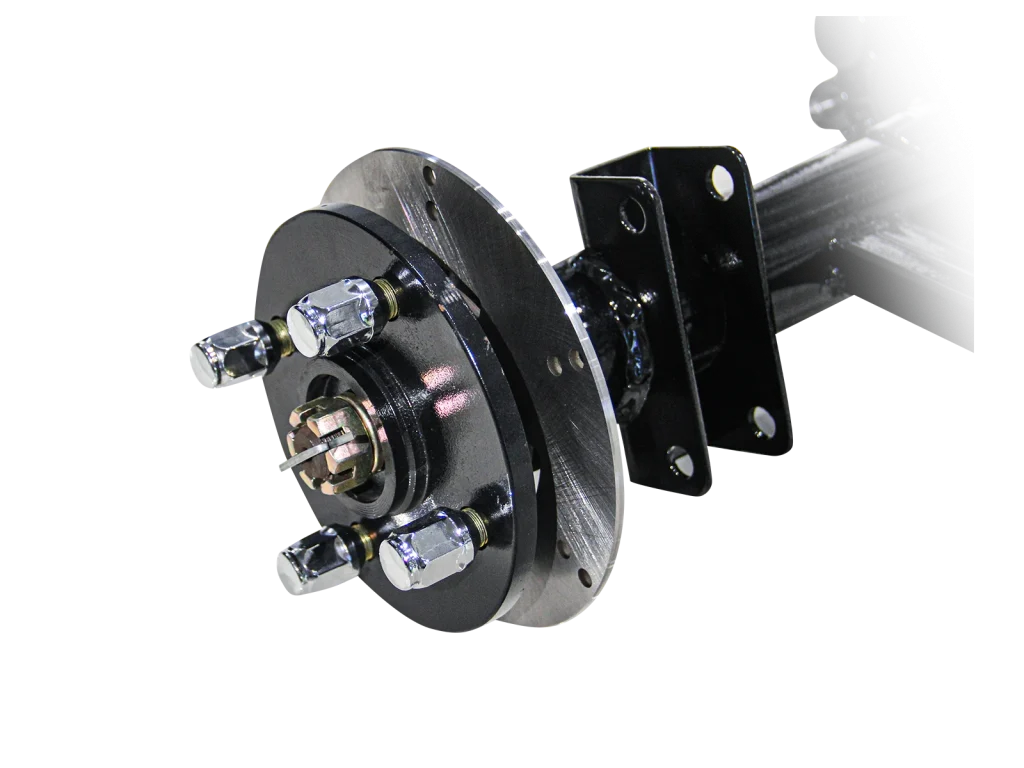

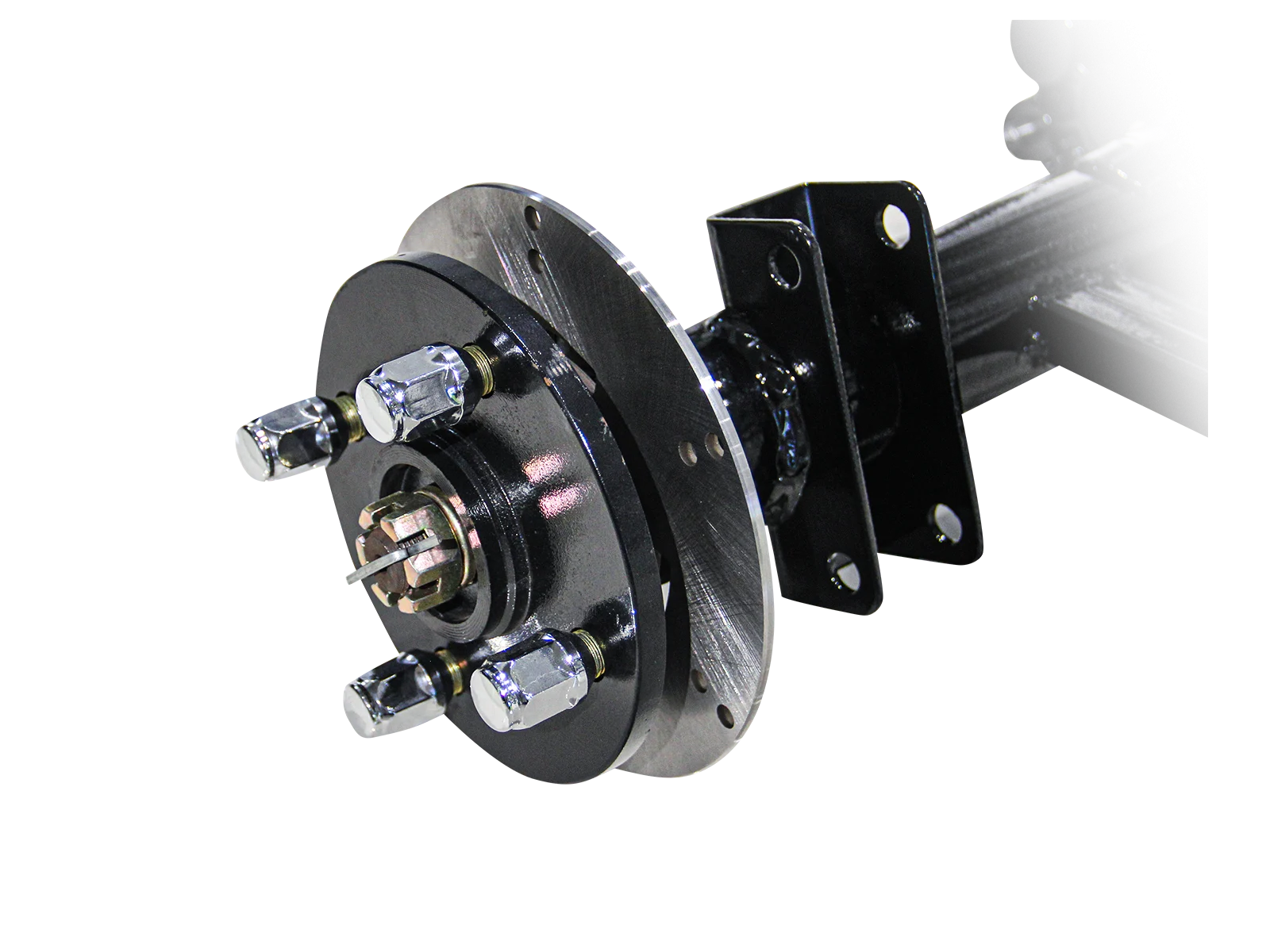

• Composition: It typically consists of two half-axles, each equipped with a disc brake assembly. These assemblies include key components such as brake discs, calipers, brake pads, and others that work together to achieve efficient braking.

Working Principle

The disc brake rear axle operates based on the principle of friction braking. When the driver presses the brake pedal, the braking system generates pressure that pushes the pistons within the calipers outward. This movement squeezes the brake pads against the brake discs, creating friction that slows down or stops the rotation of the wheels.

Product Parameter Specifications

Product Advantages

The advantages of Nanpu’s Integrated Disc Brake Rear Axle can be summarized as follows:

1. Integrated Structure with High Coaxiality:
   • The rear axle adopts an integrated design, resulting in high coaxiality among its components. High coaxiality ensures greater stability and durability during vehicle operation, minimizing performance degradation due to vibration or wear. This enhances the overall stability and reliability of the vehicle.
2. Stable Performance and Enhanced Load Capacity:
   • The integrated design strengthens the overall rigidity and load-bearing capacity of the rear axle. This allows it to withstand greater loads, making it suitable for commercial vehicles or those operating under demanding conditions. The stable performance guarantees safety and reliability across various road conditions.
3. Hydraulic Disc Braking System with High Braking Torque:
   • The adoption of a hydraulic disc braking system provides significantly higher braking torque compared to traditional braking methods. The hydraulic transmission offers stable pressure and fast response, leading to more sensitive and reliable braking. In emergency situations, it enables quicker stopping, reducing braking distances and enhancing safety.
4. Sensitive Braking Response and Excellent Heat Dissipation:
   • The brake discs in the hydraulic disc braking system are exposed to the air, facilitating efficient heat dissipation. During continuous braking or high-speed driving, the heat generated by the brake discs is quickly carried away by the air, preventing overheating and maintaining braking performance. The sensitive braking response also allows drivers to more accurately control braking, enhancing the driving experience.
5. Stable Braking Efficiency:
   • Due to the stability and superior heat dissipation performance of the hydraulic disc braking system, its braking efficiency remains relatively constant across different operating conditions and environments. This reduces potential safety hazards caused by fluctuations in braking performance.
6. Customizable Configurations:
   • Nanpu’s Integrated Disc Brake Rear Axle offers various configurations ranging from high to low specifications. Customers can select the appropriate configuration based on their usage requirements and budget constraints. This flexible configuration approach satisfies the personalized needs of different customers and enhances the product’s market competitiveness.
